Earthing Tongs

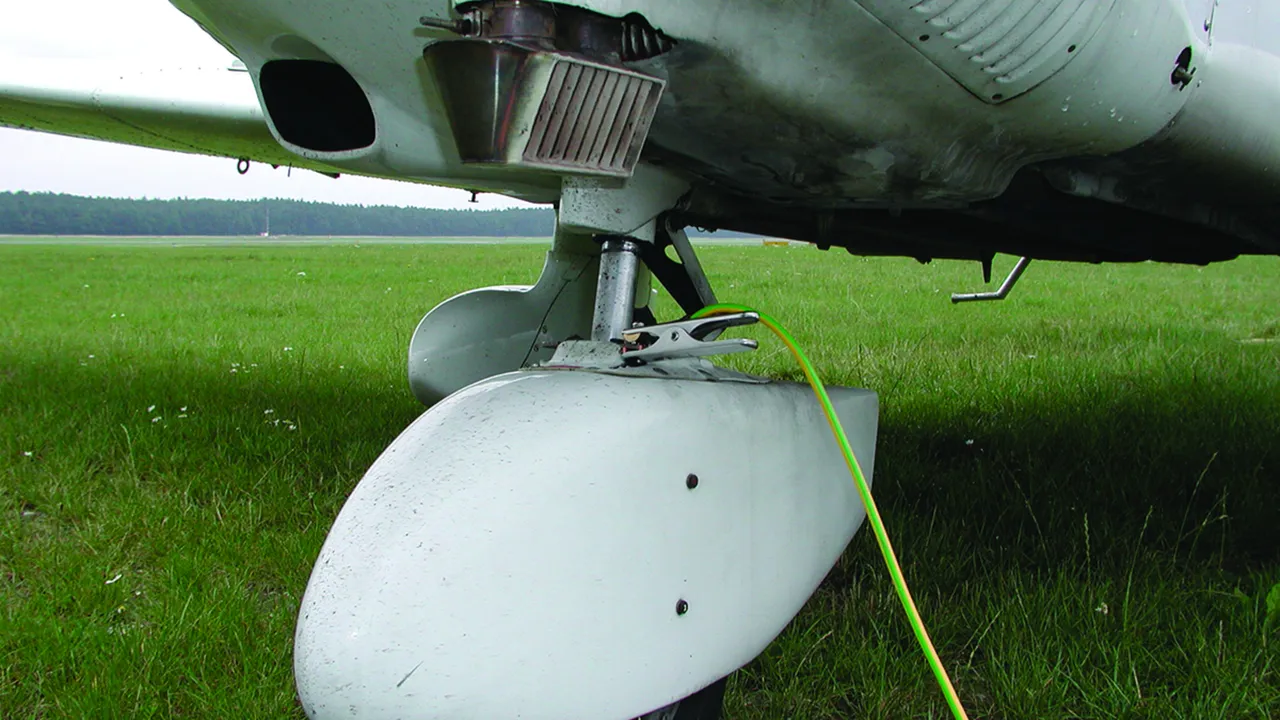

Earthing tongs for controlled earthing and discharging of static charge of tank vehicles, aircrafts, containers, tanks, etc.
Also for use in hazardous areas.

Small design

Brass jaw with steel tips (Material No. 1.4104) and copper contact clip.
Connection: Flat head screw with slot or with enclosed crimped cable lug 25 mm² – M6 (Cu/gal Sn).

Part No. 546 002 may also be combined with earthing conductor. See Safety Equipment catalogue Part No. 758 216.

2 Prodotti

Art. 546025 EZ 16 FL13 ASM6 STGALZN

GTIN (EAN) 4013364004023, Codice doganale (EU): 85359000, Peso lordo: 177.60 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Earthing tongs, small, St/gal Zn, 140 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive atmospheres
Material of tongs: St/gal Zn
Clamping range Rd / Fl: up to Ø16 / up to 13 mm
Length: 140 mm
Connection screw: M6 x 12 mm

Brand: DEHN
Type: EZ 16 FL13 ASM6 STGALZN
Part No.: 546025
or equivalent.

Certificati



Caratteristiche tecniche

Material of tongs St/gal Zn
Clamping range Rd / Fl up to Ø16 / up to 13 mm
Length 140 mm
Connection screw M6 x 12 mm

Prodotto 546025 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 546025 è stato aggiunto al carrello.

Apri Web-Shop

Art. 546002 EZ 16 FL13 ASM6 V2A

GTIN (EAN) 4013364004016, Codice doganale (EU): 85359000, Peso lordo: 177.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Earthing tongs, small, StSt, 140 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive
atmospheres
Brass jaw with steel tips (material no. 1.4104)
and copper contact clip
Material of tongs: StSt
Clamping range Rd / Fl: up to Ø16 / up to 13 mm
Length: 140 mm
Connection screw: M6 x 16 mm

Brand: DEHN
Type: EZ 16 FL13 ASM6 V2A
Part No.: 546002
or equivalent.

Certificati



Caratteristiche tecniche

Material of tongs StSt
Clamping range Rd / Fl up to Ø16 / up to 13 mm
Length 140 mm
Connection screw M6 x 16 mm

Prodotto 546002 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 546002 è stato aggiunto al carrello.

Apri Web-Shop

Large version with brass jaw without steel tips and copper contact clip.

Connection: Threaded pin with nut.

2 Prodotti

Art. 546000 EZ 55 FL45 ASM10 STGALZN

GTIN (EAN) 4013364019959, Codice doganale (EU): 85359000, Peso lordo: 544.31 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Earthing tongs, large, St/gal Zn, 205 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive
atmospheres
Brass jaw without steel tips
and copper contact clip
Material of tongs: St/gal Zn
Clamping range Rd / Fl: up to Ø55 / up to 45 mm
Length: 205 mm
Connection nut: M10

Brand: DEHN
Type: EZ 55 FL45 ASM10 STGALZN
Part No.: 546000
or equivalent.

Certificati



Caratteristiche tecniche

Material of tongs St/gal Zn
Clamping range Rd / Fl up to Ø55 / up to 45 mm
Length 205 mm
Connection nut M10

Prodotto 546000 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 546000 è stato aggiunto al carrello.

Apri Web-Shop

Art. 546001 EZ 55 FL45 ASM10 V2A

GTIN (EAN) 4013364019973, Codice doganale (EU): 85359000, Peso lordo: 542.70 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Earthing tongs, large, StSt, 205 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive atmospheres
Material of tongs: StSt
Clamping range Rd / Fl: up to Ø55 / up to 45 mm
Length: 205 mm
Connection nut: M10

Brand: DEHN
Type: EZ 55 FL45 ASM10 V2A
Part No.: 546001
or equivalent.

Certificati



Caratteristiche tecniche

Material of tongs StSt
Clamping range Rd / Fl up to Ø55 / up to 45 mm
Length 205 mm
Connection nut M10

Prodotto 546001 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 546001 è stato aggiunto al carrello.

Apri Web-Shop

Large version with two brass jaws with steel tips

Connection: Threaded pin with nut.

1 Prodotto

Art. 546211 EZ 55 FL45 ASM10 4KSP V2A

GTIN (EAN) 4013364294493, Codice doganale (EU): 85359000, Peso lordo: 632.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Earthing tongs, large, StSt, 205 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive atmospheres
Two brass jaws with steel tips (Material no. 1.4104)
Material of tongs: StSt
Clamping range Rd / Fl: up to Ø55 / up to 45 mm
Length: 205 mm
Connection nut: M10

Brand: DEHN
Type: EZ 55 FL45 ASM10 4KSP V2A
Part No.: 546211
or equivalent.

Certificati



Caratteristiche tecniche

Material of tongs StSt
Clamping range Rd / Fl up to Ø55 / up to 45 mm
Length 205 mm
Connection nut M10

Prodotto 546211 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 546211 è stato aggiunto al carrello.

Apri Web-Shop
