MV Clamps for Air-Termination Rods

Multi-purpose connecting clamp for universal use as a cross clamp, T clamp and parallel clamp; two-piece.

With hexagon screw, spring washer and thread in the base part

2 Prodotti

Art. 392050 MVK 8.10 16 SKM10X40 FSC STTZN

GTIN (EAN) 4013364096066, Codice doganale (EU): 85359000, Peso lordo: 123.30 g, UM: 50.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

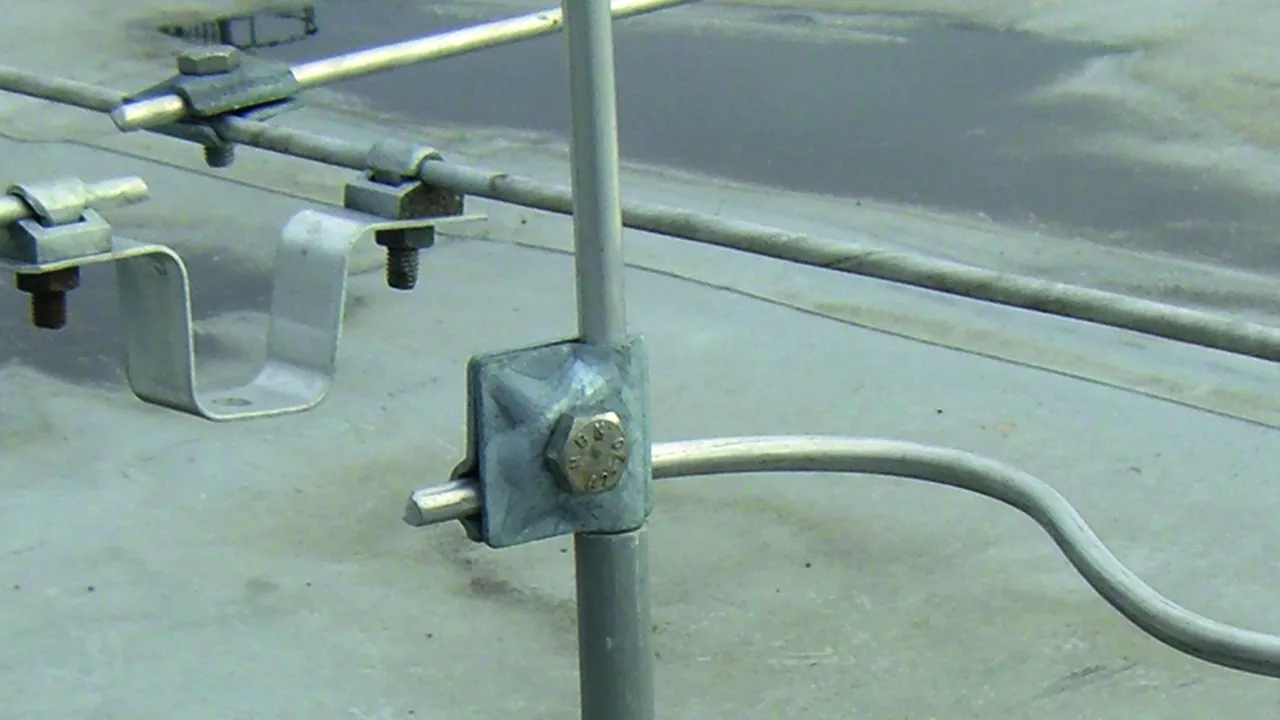

MV clamp for air-termination rods, St/tZn
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with hexagon screw, spring washer and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC STTZN
Part No.: 392050
or equivalent.

Certificati

Caratteristiche tecniche

Material of clamp	St/tZn
Clamping range Rd	8-10 / 16 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Prodotto 392050 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 392050 è stato aggiunto al carrello.

Apri Web-Shop

Art. 392059 MVK 8.10 16 SKM10X40 FSC V2A

GTIN (EAN) 4013364096059, Codice doganale (EU): 85359000, Peso lordo: 121.40 g, UM: 50.00 pc(s)

Predecessore

Immagini

Open PDF

Maggior informazioni

File CAD

MV clamp for air-termination rods, StSt
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with hexagon screw, spring washer and threaded base part
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC V2A
Part No.: 392059
or equivalent.

Certificati

Caratteristiche tecniche

Material of clamp	StSt
Clamping range Rd	8-10 / 16 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Prodotto 392059 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 392059 è stato aggiunto al carrello.

Apri Web-Shop

With truss head screw and anti-rotation protection

2 Prodotti

Art. 392060 MVK 8.10 16 FRM10X40 STTZN

GTIN (EAN) 4013364096141, Codice doganale (EU): 85359000, Peso lordo: 132.40 g, UM: 50.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

MV clamp for air-termination rods with truss head screw, St/tZn
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 STTZN
Part No.: 392060
or equivalent.

Certificati

Caratteristiche tecniche

Material of clamp	St/tZn
Clamping range Rd	8-10 / 16 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Prodotto 392060 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 392060 è stato aggiunto al carrello.

Apri Web-Shop

Art. 392069 MVK 8.10 16 FRM10X40 V2A

GTIN (EAN) 4013364096158, Codice doganale (EU): 85359000, Peso lordo: 128.40 g, UM: 50.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

MV clamp for air-termination rods with truss head screw, St/tZn
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 V2A
Part No.: 392069
or equivalent.

Certificati

Caratteristiche tecniche

Material of clamp	StSt
Clamping range Rd	8-10 / 16 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.
