Art. 105563 SR D50 3500 FSP1000 IA HVIP GFK AL

GTIN (EAN) 4013364271937, Codice doganale (EU): 85389099, Peso lordo: 5.70 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductor with air-termation tip, 3500 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 3500 mm
Max. gust wind speed: (Max. free length 3,500 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed: (Max. free length 3,500 mm, 1x HVI power outside) 190 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FSP1000 IA HVIP GFK AL
Part No.: 105563
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	3500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	3500 mm
Max. gust wind speed	(Max. free length 3,500 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed	(Max. free length 3,500 mm, 1x HVI power outside) 190 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105563 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105563 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105565 SR D50 5000 FSP1000 IA HVIP GFK AL

GTIN (EAN) 4013364271944, Codice doganale (EU): 85389099, Peso lordo: 8.10 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductor with air-termination tip 5000 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 4000 mm
Max. gust wind speed: (Max. free length 4,000 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed: (Max. free length 4,000 mm, 1x HVI power outside) 180 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FSP1000 IA HVIP GFK AL
Part No.: 105565
or equivalent.

Caratteristiche tecniche

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	4000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	4000 mm
Max. gust wind speed	(Max. free length 4,000 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed	(Max. free length 4,000 mm, 1x HVI power outside) 180 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105565 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105565 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105320 SR D50 3500 FSP1000 IP HVIP GFK V2A

GTIN (EAN) 4013364152373, Codice doganale (EU): 85389099, Peso lordo: 10.60 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

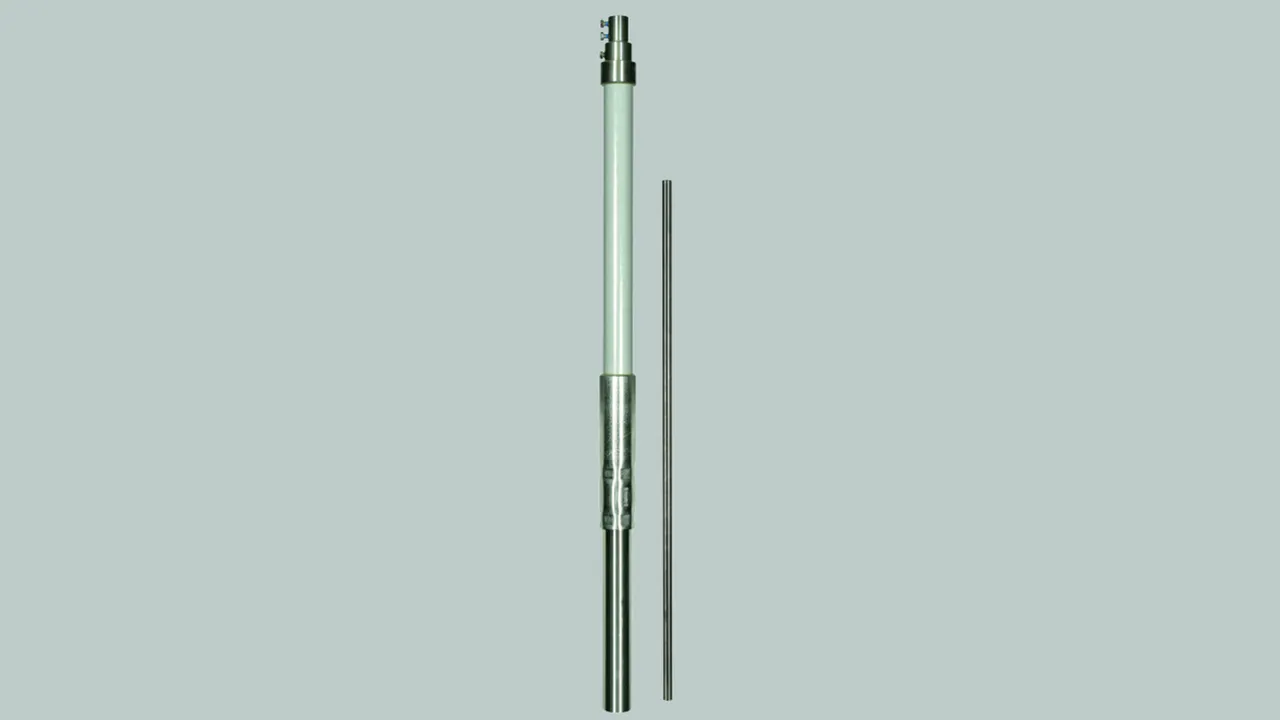

Supporting tube for HVI power Conductor with air-termination tip, 3500 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 3500 mm
Max. gust wind speed: (Max. free length 3,500 mm, 1x HVI power inside) 234 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FSP1000 IP HVIP GFK V2A
Part No.: 105320
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	3500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	3500 mm
Max. gust wind speed	(Max. free length 3,500 mm, 1x HVI power inside) 234 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105320 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105320 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105322 SR D50 5000 FSP1000 IP HVIP GFK V2A

GTIN (EAN) 4013364152380, Codice doganale (EU): 85389099, Peso lordo: 15.80 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductor with air-termination tip, 5000 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 4000 mm
Max. gust wind speed: (Max. free length 4,000 mm, 1x HVI power inside) 232 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FSP1000 IP HVIP GFK V2A
Part No.: 105322
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	4000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	4000 mm
Max. gust wind speed	(Max. free length 4,000 mm, 1x HVI power inside) 232 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105322 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105322 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105573 SR D50 3500 FS2500 IA HVIP GFK AL

GTIN (EAN) 4013364271975, Codice doganale (EU): 85389099, Peso lordo: 6.56 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductor with air-termination rod, 3500 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed: (Max. free length 5,000 mm, 1x HVI power inside) 168 km/h
Max. gust wind speed: (Max. free length 5,000 mm, 1x HVI power outside) 144 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS2500 IA HVIP GFK AL
Part No.: 105573
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5000 mm
Max. gust wind speed	(Max. free length 5,000 mm, 1x HVI power inside) 168 km/h
Max. gust wind speed	(Max. free length 5,000 mm, 1x HVI power outside) 144 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105573 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105573 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105575 SR D50 5000 FS2500 IA HVIP GFK AL

GTIN (EAN) 4013364272026, Codice doganale (EU): 85389099, Peso lordo: 8.90 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductor with air-termination rod, 5000 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed: (Max. free length 5,500 mm, 1x HVI power inside) 163 km/h
Max. gust wind speed: (Max. free length 5,500 mm, 1x HVI power outside) 140 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS2500 IA HVIP GFK AL
Part No.: 105575
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5500 mm
Max. gust wind speed	(Max. free length 5,500 mm, 1x HVI power inside) 163 km/h
Max. gust wind speed	(Max. free length 5,500 mm, 1x HVI power outside) 140 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105575 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105575 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105321 SR D50 3500 FS22 10 2500 IP HVIP GFK V2A

GTIN (EAN) 4013364152397, Codice doganale (EU): 85389099, Peso lordo: 12.20 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductor with air-termination rod, 3500 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed: (Max. free length 5,000 mm, 1x HVI power inside) 163 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS22 10 2500 IP HVIP GFK V2A
Part No.: 105321
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	StSt
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5000 mm
Max. gust wind speed	(Max. free length 5,000 mm, 1x HVI power inside) 163 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105321 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105321 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105323 SR D50 5000 FS22 10 2500 IP HVIP GFK V2A

GTIN (EAN) 4013364152403, Codice doganale (EU): 85389099, Peso lordo: 16.30 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductor with air-termination rod, 5000 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed: (Max. free length 5,500 mm, 1x HVI power inside) 159 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS22 10 2500 IP HVIP GFK V2A
Part No.: 105323
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	StSt
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5500 mm
Max. gust wind speed	(Max. free length 5,500 mm, 1x HVI power inside) 159 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105323 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105323 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105513 SR D50 3500 FSP1000 IA SA HVIP GFK AL

GTIN (EAN) 4013364270282, Codice doganale (EU): 85389099, Peso lordo: 5.50 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tube with side outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FSP1000 IA SA HVIP GFK AL
Part No.: 105513
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105513 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105513 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105515 SR D50 5000 FSP1000 IA SA HVIP GFK AL

GTIN (EAN) 4013364271821, Codice doganale (EU): 85389099, Peso lordo: 8.00 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tube with side outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FSP1000 IA SA HVIP GFK AL
Part No.: 105515
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105515 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105515 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105392 SR D50 3500 FS1000 IP SA HVIP GFK V2A

GTIN (EAN) 4013364157903, Codice doganale (EU): 85389099, Peso lordo: 10.20 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with side outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS1000 IP SA HVIP GFK V2A
Part No.: 105392
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105392 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105392 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105394 SR D50 5000 FS1000 IP SA HVIP GFK V2A

GTIN (EAN) 4013364157910, Codice doganale (EU): 85389099, Peso lordo: 15.10 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS1000 IP SA HVIP GFK V2A
Part No.: 105394
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105394 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105394 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105543 SR D50 3500 FS2500 IA SA HVIP GFK AL

GTIN (EAN) 4013364271845, Codice doganale (EU): 85389099, Peso lordo: 6.40 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS2500 IA SA HVIP GFK AL
Part No.: 105543
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105543 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105543 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105545 SR D50 5000 FS2500 IA SA HVIP GFK AL

GTIN (EAN) 4013364271876, Codice doganale (EU): 85389099, Peso lordo: 8.90 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS2500 IA SA HVIP GFK AL
Part No.: 105545
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0,7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105545 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105545 è stato aggiunto al carrello.

Apri Web-Shop

Art. 105395 SR D50 5000 FS2500 IP SA HVIP GFK V2A

GTIN (EAN) 4013364157934, Codice doganale (EU): 85389099, Peso lordo: 17.12 kg, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS2500 IP SA HVIP GFK V2A
Part No.: 105395
or equivalent.

Certificati

Caratteristiche tecniche

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	StSt
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0,7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105395 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105395 è stato aggiunto al carrello.

Apri Web-Shop

Supporting Tubes for HVI power Conductor / HVI power long Conductor

With air-termination tip

Art. 105563 SR D50 3500 FSP1000 IA HVIP GFK AL

Non siete autorizzati per eseguire un download 105563.stp

Non siete autorizzati per eseguire un download 105563.igs

Non siete autorizzati per eseguire un download 105563.jt

Non siete autorizzati per eseguire un download 105563.dwg

Non siete autorizzati per eseguire un download 105320m_D.dxf

Prodotto 105563 è stato aggiunto al blocco note.

Prodotto 105563 è stato aggiunto al carrello.

Art. 105565 SR D50 5000 FSP1000 IA HVIP GFK AL

Non siete autorizzati per eseguire un download 105565.stp

Non siete autorizzati per eseguire un download 105565.igs

Non siete autorizzati per eseguire un download 105565.jt

Non siete autorizzati per eseguire un download 105565.dwg

Non siete autorizzati per eseguire un download 105322m_D.dxf

Prodotto 105565 è stato aggiunto al blocco note.

Prodotto 105565 è stato aggiunto al carrello.

Art. 105320 SR D50 3500 FSP1000 IP HVIP GFK V2A

Non siete autorizzati per eseguire un download 105320.stp

Non siete autorizzati per eseguire un download 105320.igs

Non siete autorizzati per eseguire un download 105320.jt

Non siete autorizzati per eseguire un download 105320.dwg

Non siete autorizzati per eseguire un download 105320m_D.dxf

Prodotto 105320 è stato aggiunto al blocco note.

Prodotto 105320 è stato aggiunto al carrello.

Art. 105322 SR D50 5000 FSP1000 IP HVIP GFK V2A

Non siete autorizzati per eseguire un download 105322.stp

Non siete autorizzati per eseguire un download 105322.igs

Non siete autorizzati per eseguire un download 105322.jt

Non siete autorizzati per eseguire un download 105322.dwg

Non siete autorizzati per eseguire un download 105322m_D.dxf

Prodotto 105322 è stato aggiunto al blocco note.

Prodotto 105322 è stato aggiunto al carrello.

With air-termination rod

Art. 105573 SR D50 3500 FS2500 IA HVIP GFK AL

Non siete autorizzati per eseguire un download 105573.stp

Non siete autorizzati per eseguire un download 105573.igs

Non siete autorizzati per eseguire un download 105573.jt

Non siete autorizzati per eseguire un download 105573.dwg

Non siete autorizzati per eseguire un download 105321m_D.dxf

Prodotto 105573 è stato aggiunto al blocco note.

Prodotto 105573 è stato aggiunto al carrello.

Art. 105575 SR D50 5000 FS2500 IA HVIP GFK AL

Non siete autorizzati per eseguire un download 105575.stp

Non siete autorizzati per eseguire un download 105575.igs

Non siete autorizzati per eseguire un download 105575.jt

Non siete autorizzati per eseguire un download 105575.dwg

Non siete autorizzati per eseguire un download 105323m_D.dxf

Prodotto 105575 è stato aggiunto al blocco note.

Prodotto 105575 è stato aggiunto al carrello.

Art. 105321 SR D50 3500 FS22 10 2500 IP HVIP GFK V2A

Non siete autorizzati per eseguire un download 105321.stp

Non siete autorizzati per eseguire un download 105321.igs

Non siete autorizzati per eseguire un download 105321.jt

Non siete autorizzati per eseguire un download 105321.dwg

Non siete autorizzati per eseguire un download 105321m_D.dxf

Prodotto 105321 è stato aggiunto al blocco note.

Prodotto 105321 è stato aggiunto al carrello.

Art. 105323 SR D50 5000 FS22 10 2500 IP HVIP GFK V2A

Non siete autorizzati per eseguire un download 105323.stp

Non siete autorizzati per eseguire un download 105323.igs

Non siete autorizzati per eseguire un download 105323.jt

Non siete autorizzati per eseguire un download 105323.dwg

Non siete autorizzati per eseguire un download 105323m_D.dxf

Prodotto 105323 è stato aggiunto al blocco note.

Prodotto 105323 è stato aggiunto al carrello.

With air-termination tip and side outlet

Art. 105513 SR D50 3500 FSP1000 IA SA HVIP GFK AL

Non siete autorizzati per eseguire un download 105513.stp

Non siete autorizzati per eseguire un download 105513.igs

Non siete autorizzati per eseguire un download 105513.jt

Non siete autorizzati per eseguire un download 105513.dwg

Non siete autorizzati per eseguire un download 105392m_D.dxf

Prodotto 105513 è stato aggiunto al blocco note.

Prodotto 105513 è stato aggiunto al carrello.

Art. 105515 SR D50 5000 FSP1000 IA SA HVIP GFK AL

Non siete autorizzati per eseguire un download 105515.stp

Non siete autorizzati per eseguire un download 105515.igs

Non siete autorizzati per eseguire un download 105515.jt
