Protection module for DEHNgap modular

High discharge capacity due to powerful creepage discharge spark gap

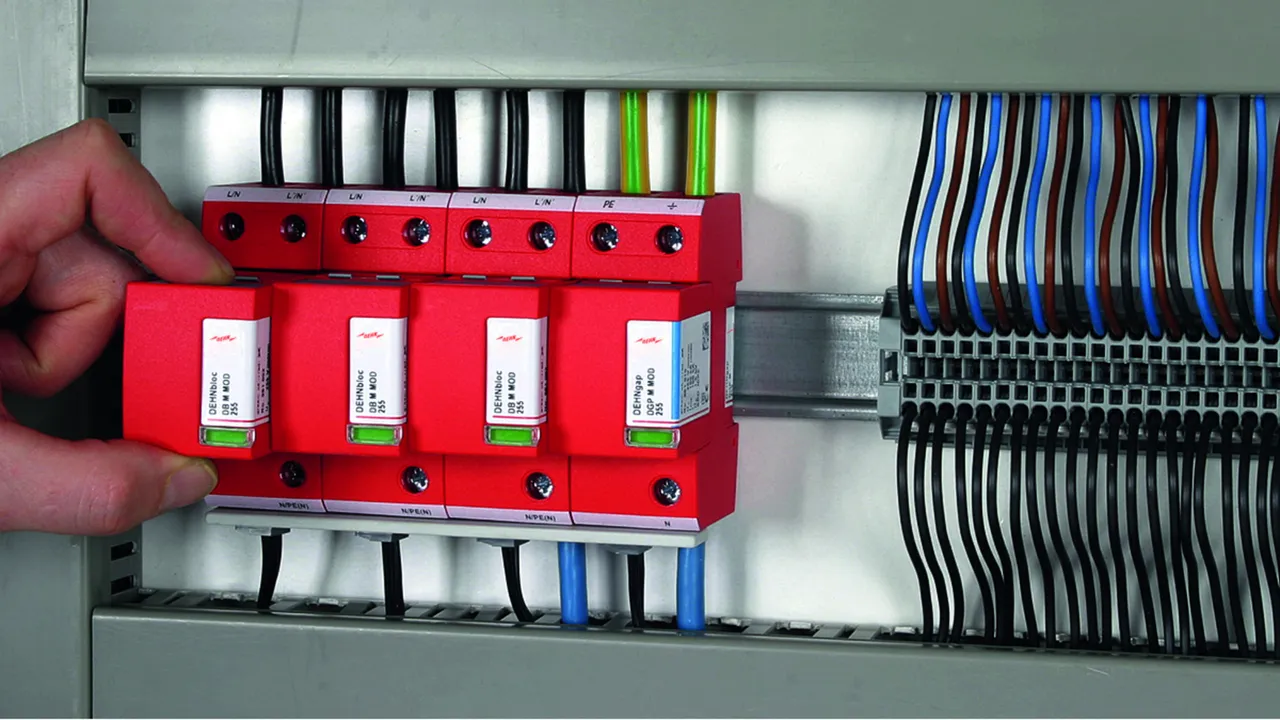

Easy replacement of protection modules without tools due to module locking system with module release button
Operating state/fault indication with green-red marking in the inspection window

DGP M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap M family.

1 Prodotto

Art. 961010 DGP M MOD 255

GTIN (EAN) 4013364118744, Codice doganale (EU): 85363030, Peso lordo: 182.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

DGP M MOD 255 N-PE spark-gap-based protection module
N-PE spark-gap-based protection module suitable
for all devices of the modular DEHNgap M series
Type 1 N-PE arrester according to EN 61643-11
RADAX Flow spark gap technology
Fault indication
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Follow current extinguishing capability: 100 Arms at 255 V AC

Brand: DEHN
Type: DGP M MOD 255
Part No.: 961010
or equivalent.

Caratteristiche tecniche

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	100 kA

Prodotto 961010 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 961010 è stato aggiunto al carrello.

Apri Web-Shop

DGPH M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap H M family.

1 Prodotto

Art. 961020 DGPH MOD 255

GTIN (EAN) 4013364118706, Codice doganale (EU): 85363030, Peso lordo: 151.00 g, UM: 1.00 pc(s)
