Protection module for DEHNventil modular

High discharge capacity due to powerful creepage discharge spark gap
Maximum system availability due to RADAX Flow follow current limitation

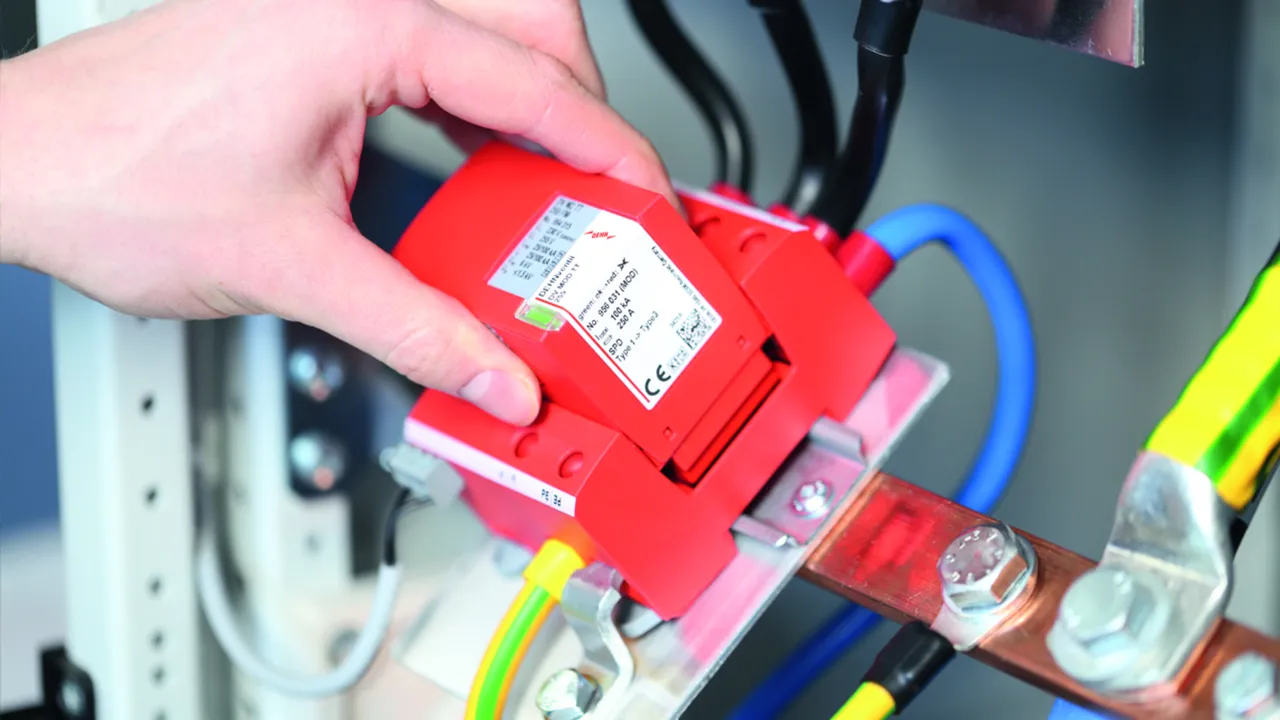

Easy replacement of protection modules without tools due to module locking system with module release button
Operating state/fault indication with green-red marking in the inspection window

In multipole protective circuits, we recommend replacing the complete set of protection modules when one module fails.

Dettagli

RAC Spark Gap Protection Module

RAC spark-gap-based protection modules

5 Prodotti

Art. 956030 DV MOD TNC 255

GTIN (EAN) 4013364510609, Codice doganale (EU): 85363090, Peso lordo: 269.21 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

Spark-gap-based protection module, DV MOD TNC 255
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 75 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TNC 255
Part No.: 956030
or equivalent.

Certificati

Caratteristiche tecniche

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	75 kA

Prodotto 956030 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 956030 è stato aggiunto al carrello.

Apri Web-Shop

Art. 956040 DV MOD TNS 255

GTIN (EAN) 4013364510593, Codice doganale (EU): 85363090, Peso lordo: 333.70 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DV MOD TNS 255 spark-gap-based protection module
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TNS 255
Part No.: 956040
or equivalent.

Certificati

Caratteristiche tecniche

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	100 kA

Prodotto 956040 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 956040 è stato aggiunto al carrello.

Apri Web-Shop

Art. 956031 DV MOD TT 255

GTIN (EAN) 4013364546943, Codice doganale (EU): 85363090, Peso lordo: 346.83 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DV MOD TT 255 spark-gap-based protection module
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TT 255
Part No.: 956031
or equivalent.

Certificati

Caratteristiche tecniche

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	100 kA

Prodotto 956031 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 956031 è stato aggiunto al carrello.

Apri Web-Shop

Art. 956020 DV MOD TN 255

GTIN (EAN) 4013364510616, Codice doganale (EU): 85363090, Peso lordo: 173.30 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

Spark-gap-based protection module, DV MOD TN 255
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 50 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TN 255
Part No.: 956020
or equivalent.

Certificati

Caratteristiche tecniche

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	50 kA

Prodotto 956020 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 956020 è stato aggiunto al carrello.

Apri Web-Shop

Art. 956011 DV MOD TT 2P 255

GTIN (EAN) 4013364546950, Codice doganale (EU): 85363090, Peso lordo: 191.83 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

Spark-gap-based protection module, DV MOD TT 2P 255
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 50 kAeff (prosp.)
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TT 2P 255
Part No.: 956011
or equivalent.

Certificati

Caratteristiche tecniche

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA

Prodotto 956011 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 956011 è stato aggiunto al carrello.

Apri Web-Shop

Spark-Gap-Based Protection Module

Spark-gap-based protection module for DEHNventil M ...

1 Prodotto

Art. 951001 DV MOD 255

GTIN (EAN) 4013364108066, Codice doganale (EU): 85363090, Peso lordo: 204.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Spark-gap-based protection module DV MOD 255
Spark-gap-based protection module for type 1 + type 2
Arresters of the Red/Line series acc. to EN 61643-11
Maximum system availability due to
RADAX Flow follow current limitation.
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 264 V AC
Lightning impulse current: 25 kA

Brand: DEHN
Type: DV MOD 255
Part No.: 951001
or equivalent.

Certificati

Caratteristiche tecniche

Max. continuous operating voltage (a.c.) (U_C )	264 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA

Prodotto 951001 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951001 è stato aggiunto al carrello.

Apri Web-Shop

N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for DEHNventil M ... with ... + 1 configuration.

2 Prodotti

Art. 951050 DV MOD NPE 50

GTIN (EAN) 4013364108073, Codice doganale (EU): 85363030, Peso lordo: 182.60 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

DV MOD NPE 50 N-PE spark-gap-based protection module
50 kA N-PE spark-gap-based protection module
for type 1 N-PE surge arresters
of the Red/Line family acc. to EN 61643-11
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 50 kA

Brand: DEHN
Type: DV MOD NPE 50
Part No.: 951050
or equivalent.

Certificati

Caratteristiche tecniche

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	50 kA

Prodotto 951050 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951050 è stato aggiunto al carrello.

Apri Web-Shop

Art. 951100 DV MOD NPE 100

GTIN (EAN) 4013364108080, Codice doganale (EU): 85363030, Peso lordo: 183.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

DV MOD NPE 100 N-PE spark-gap-based protection module
100 kA N-PE spark-gap-based protection module
for type 1 N-PE surge arresters of the
Red/Line product series acc. to EN 61643-11
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 100 kA

Brand: DEHN
Type: DV MOD NPE 100
Part No.: 951100
or equivalent.

Certificati

Caratteristiche tecniche

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	100 kA

Prodotto 951100 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951100 è stato aggiunto al carrello.

Apri Web-Shop

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	75 kA
Specific energy (W/R)	156.25 kJ/ohms
Follow current extinguishing capability [L-N] (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	No tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	156.25 kJ/ohms
Follow current extinguishing capability [L-N] (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	No tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	156.25 kJ/ohms
Follow current extinguishing capability [L-N] (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	No tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms / 100 A_rms

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Specific energy (W/R)	156.25 kJ/ohms
Follow current extinguishing capability [L-N] (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	No tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Follow current extinguishing capability [L-N] (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	No tripping of a 32 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms / 100 A_rms
