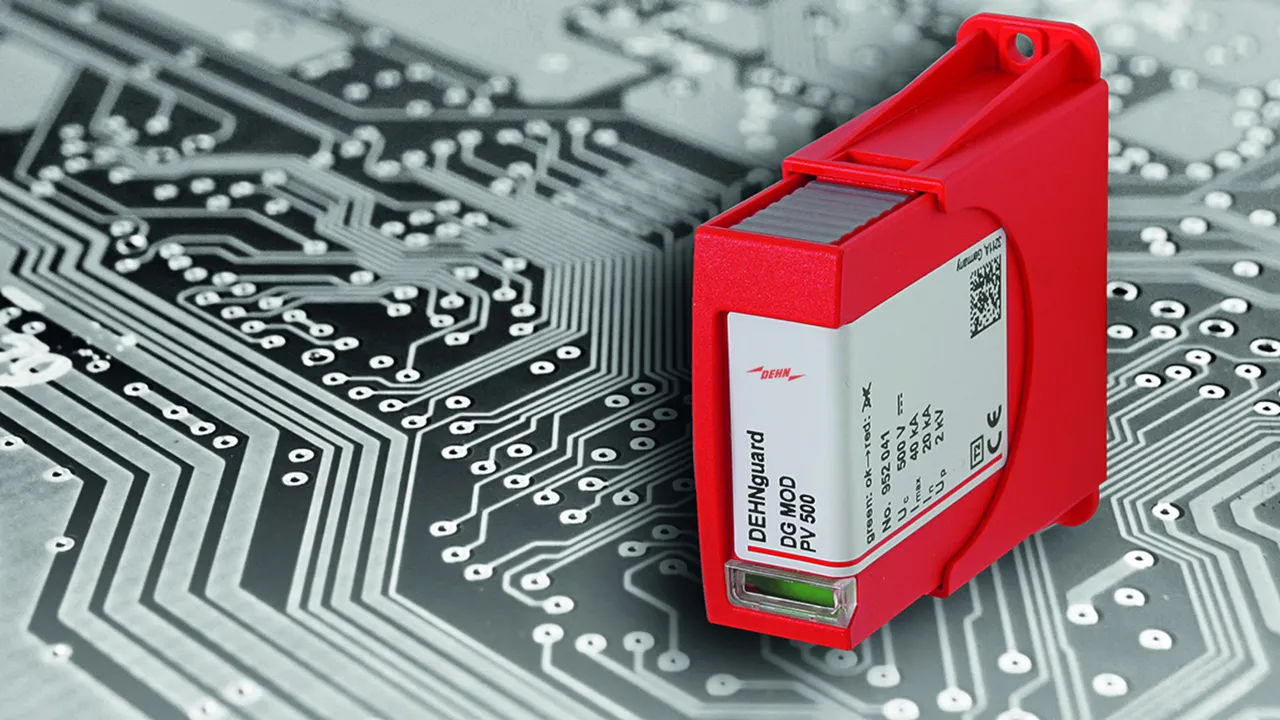

DEHNguard PCB

  • Base for DEHNguard protection modules to be mounted on and integrated in PCBs
  • Optimal integration of a type 2 arrester in devices
  • Easy and flexible use for all circuit configurations
  • Proven DEHNguard modules ensure high performance
  • Coded base and protection module guard against installing an incorrect module
  • Version with and without remote signalling contact for the monitoring device
  • Versions for maximum requirements on clearances and creepage distances
  • Versions for other DEHNguard protection modules available on request

DEHNguard PCB PV SCI ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Prodotti

Art. 952653 DG PCB PV SCI 300

GTIN (EAN) 4013364150713, Codice doganale (EU): 85366930, Peso lordo: 19.89 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV SCI 300 single-pole base
Single-pole base for DEHNguard protection modules
for integration on PCBs
Coded base part and protection module
Mounting via screw and soldered connection on PCBs
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 500 V

Brand: DEHN
Type: DG PCB PV SCI 300
Part No.: 952653
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Prodotto 952653 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952653 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952651 DG PCB PV SCI 500

GTIN (EAN) 4013364146310, Codice doganale (EU): 85366930, Peso lordo: 19.89 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV SCI 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500
Part No.: 952651
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Prodotto 952651 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952651 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952654 DG PCB PV SCI 600

GTIN (EAN) 4013364149878, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV SCI 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600
Part No.: 952654
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Prodotto 952654 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952654 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard PCB PV SCI ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Prodotti

Art. 952753 DG PCB PV SCI 300 FM

GTIN (EAN) 4013364150720, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV SCI 300 FM single-pole base
Single-pole base for DEHNguard protection modules
is mounted and integrated on PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 300 FM
Part No.: 952753
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952753 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952753 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952751 DG PCB PV SCI 500 FM

GTIN (EAN) 4013364146327, Codice doganale (EU): 85366930, Peso lordo: 20.49 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV SCI 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500 FM
Part No.: 952751
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952751 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952751 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952754 DG PCB PV SCI 600 FM

GTIN (EAN) 4013364149885, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV SCI 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600 FM
Part No.: 952754
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952754 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952754 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard PCB PV ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Prodotti

Art. 952643 DG PCB PV 300

GTIN (EAN) 4013364150737, Codice doganale (EU): 85366930, Peso lordo: 19.89 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV 300 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300
Part No.: 952643
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Prodotto 952643 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952643 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952641 DG PCB PV 500

GTIN (EAN) 4013364146334, Codice doganale (EU): 85366930, Peso lordo: 19.89 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500
Part No.: 952641
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Prodotto 952641 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952641 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952644 DG PCB PV 600

GTIN (EAN) 4013364149892, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600
Part No.: 952644
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Prodotto 952644 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952644 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard PCB PV ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Prodotti

Art. 952743 DG PCB PV 300 FM

GTIN (EAN) 4013364150744, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV 300 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300 FM
Part No.: 952743
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952743 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952743 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952741 DG PCB PV 500 FM

GTIN (EAN) 4013364146341, Codice doganale (EU): 85366930, Peso lordo: 20.49 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500 FM
Part No.: 952741
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952741 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952741 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952744 DG PCB PV 600 FM

GTIN (EAN) 4013364149908, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600 FM
Part No.: 952744
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952744 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952744 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard PCB ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

2 Prodotti

Art. 952610 DG PCB 275

GTIN (EAN) 4013364149816, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB 275 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (d.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275
Part No.: 952610
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Prodotto 952610 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952610 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952614 DG PCB 385

GTIN (EAN) 4013364149847, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB 385 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (d.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385
Part No.: 952614
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Prodotto 952614 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952614 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard PCB ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Prodotti

Art. 952710 DG PCB 275 FM

GTIN (EAN) 4013364149830, Codice doganale (EU): 85366930, Peso lordo: 20.59 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275 FM
Part No.: 952710
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952710 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952710 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952714 DG PCB 385 FM

GTIN (EAN) 4013364149854, Codice doganale (EU): 85366930, Peso lordo: 20.59 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB 385 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 FM
Part No.: 952714
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952714 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952714 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard PCB NPE (FM)

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Prodotti

Art. 952650 DG PCB NPE

GTIN (EAN) 4013364149823, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB NPE single-pole base
Single-pole base for DEHNguard protection modules
to be integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (d.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE
Part No.: 952650
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Prodotto 952650 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952650 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952750 DG PCB NPE FM

GTIN (EAN) 4013364149861, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB NPE FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE FM
Part No.: 952750
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952750 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952750 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard PCB PV I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

3 Prodotti

Art. 952941 DG PCB PV I 500 FM

GTIN (EAN) 4013364228177, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV I 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 500 FM
Part No.: 952941
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952941 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952941 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952948 DG PCB PV I 600 FM

GTIN (EAN) 4013364323919, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV I 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 600 FM
Part No.: 952948
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952948 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952948 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952949 DG PCB PV I 750 FM

GTIN (EAN) 4013364323926, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PV I 750 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module): 750 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 750 FM
Part No.: 952949
or equivalent.



Caratteristiche tecniche

Associated protection module DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module) 750 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952949 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952949 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard PCB PVSCI I ...FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Prodotto

Art. 952951 DG PCB PVSCI I 500FM

GTIN (EAN) 4013364228184, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB PVSCI I 500FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PVSCI I 500FM
Part No.: 952951
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952951 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952951 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard PCB I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Prodotto

Art. 952910 DG PCB I 275 FM

GTIN (EAN) 4013364266865, Codice doganale (EU): 85366930, Peso lordo: 19.79 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

DEHNguard PCB I 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB I 275 FM
Part No.: 952910
or equivalent.

Certificati



Caratteristiche tecniche

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952910 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952910 è stato aggiunto al carrello.

Apri Web-Shop

DG PCB ... UL

2 Prodotti

Art. 952615 DG PCB 385 UL FM

GTIN (EAN) 4013364535794, Codice doganale (EU): 85366930, Peso lordo: 20.49 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

  • File CAD
    • 952653.stp

      Non siete autorizzati per eseguire un download 952653.stp

      Login
    • 952653.igs

      Non siete autorizzati per eseguire un download 952653.igs

      Login
    • 952653.jt

      Non siete autorizzati per eseguire un download 952653.jt

      Login
    • 952653.dwg

      Non siete autorizzati per eseguire un download 952653.dwg

      Login
    • 952710m_D.dxf

      Non siete autorizzati per eseguire un download 952710m_D.dxf

      Login
Single-pole base DEHNguard DG PCB 385 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 385 (Part No. 908 014)
Max. continuous AC operating voltage (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 UL FM
Part No.: 952615
or equivalent.



Caratteristiche tecniche

Associated protection module DG PLU 385 (Part No. 908 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952615 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952615 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952616 DG PCB 510 UL FM

GTIN (EAN) 4013364535800, Codice doganale (EU): 85366930, Peso lordo: 20.49 g, UM: 72.00 pc(s)

Immagini

Maggior informazioni

  • File CAD
    • 952653.stp

      Non siete autorizzati per eseguire un download 952653.stp

      Login
    • 952653.igs

      Non siete autorizzati per eseguire un download 952653.igs

      Login
    • 952653.jt

      Non siete autorizzati per eseguire un download 952653.jt

      Login
    • 952653.dwg

      Non siete autorizzati per eseguire un download 952653.dwg

      Login
    • 952710m_D.dxf

      Non siete autorizzati per eseguire un download 952710m_D.dxf

      Login
Single-pole base DEHNguard DG PCB 510 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 510 (Part No. 908 013)
Max. continuous AC operating voltage (module): 510 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 510 UL FM
Part No.: 952616
or equivalent.



Caratteristiche tecniche

Associated protection module DG PLU 510 (Part No. 908 013)
Max. continuous operating voltage (a.c.) (module) 510 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Prodotto 952616 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952616 è stato aggiunto al carrello.

Apri Web-Shop
back to top
