Insulating mats with dielectric strength 50 kV
:quality(98)/dehn.it/store/f/57084852/HDVORSCHAU/785459a0001.jpg)
:quality(98)/dehn.it/store/f/57084852/HDVORSCHAU/785459a0001.jpg)

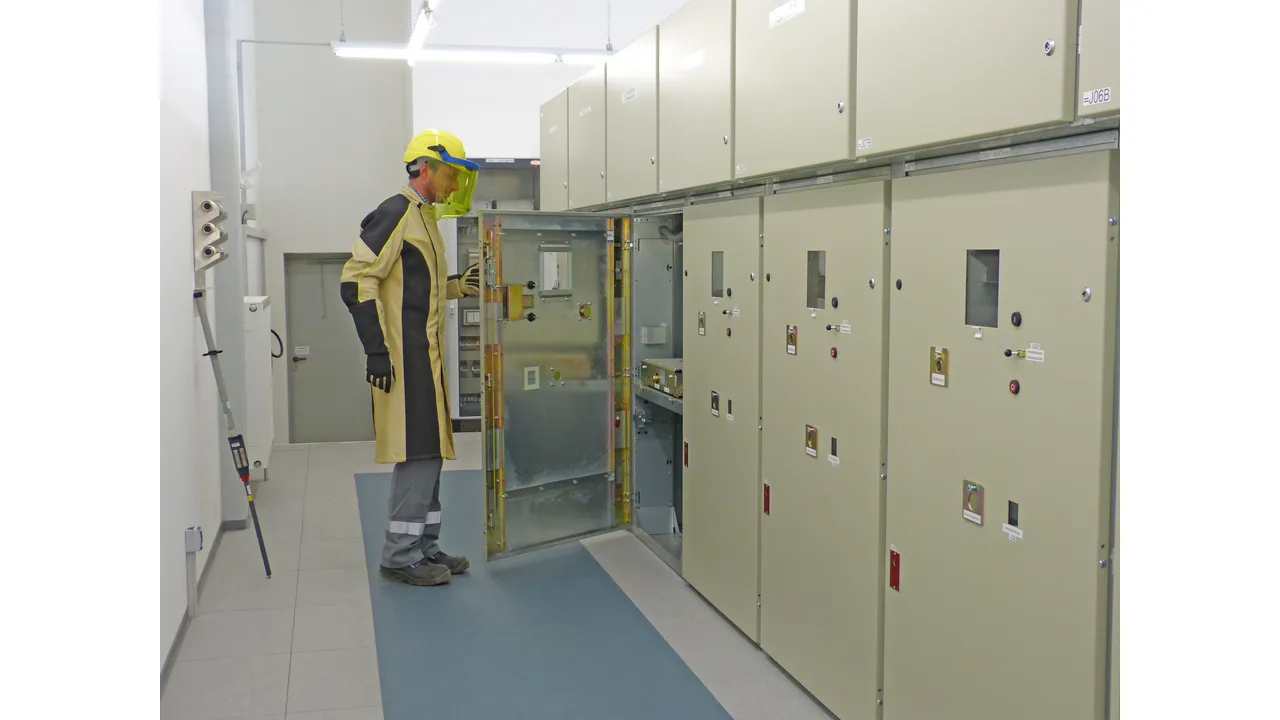

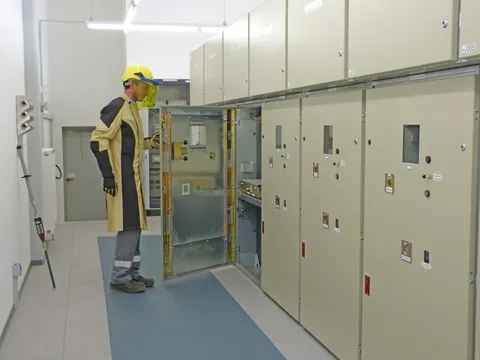

- For use in electrical switch and test rooms
- Not permitted as standing surface insulation for live working!
- Rolled goods or cut to size
Art. 785459 IMG SAN 1M 10M
GTIN (EAN) 4013364115057, Codice doganale (EU): 40082190, Peso lordo: 56.00 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/dehn.it/store/f/57084855/HDVORSCHAU/785458.jpg)
:quality(98)/dehn.it/store/f/57084855/HDVORSCHAU/785458.jpg)
Caratteristiche tecniche
| Nominal voltage up to (UN ) | 50 kV |
| Material | Polymer NR/SBR |
| Temperature resistance | -55 °C ... +70 °C |
| Length | 10 m |
| Width | 1000 mm |
| Thickness | 4.5 mm |
| Colour | Grey ● |
| Standard | VDE 0303-21 |
Art. 785458 IMG SAN 1M ..M
GTIN (EAN) 4013364115064, Codice doganale (EU): 40082190, Peso lordo: 5.80 g/mm, UM: 500.00 mm
Immagini
:quality(98)/dehn.it/store/f/57084858/HDVORSCHAU/785458.jpg)
:quality(98)/dehn.it/store/f/57084858/HDVORSCHAU/785458.jpg)
Caratteristiche tecniche
| Nominal voltage up to (UN ) | 50 kV |
| Material | Polymer NR/SBR |
| Temperature resistance | -55 °C ... +70 °C |
| Length | up to 10 m *) |
| Width | 1000 mm |
| Thickness | 4.5 mm |
| Colour | Grey ● |
| Standard | VDE 0303-21 |
| Minimum order length | 1000 mm |
| *) Length to be specified when ordering! Note: Can only be supplied in 500 mm increments. |
|
