DEHNcord

Single-pole, two-pole or three-pole surge protective device with monitoring system and disconnector
Visual fault indication
Types with disconnection of the load circuit in the event of a fault and protection of the control phase
Compact design also for outdoor use
Can be fitted in junction boxes, flush-mounted systems, cable ducts and flush-type boxes

Dettagli

DEHNcord 3P TT 275 FM

Compact three-phase arrester for TT and TN-S systems.

1 Prodotto

Art. 900439 DCOR 3P TT 275 FM

GTIN (EAN) 4013364436053, Codice doganale (EU): 85363030, Peso lordo: 129.38 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord 3P TT 275 FM surge arrester
Multipole type 2 + type 3 surge arrester according to EN 61643-11
for use in installation systems
with remote signalling contact, operating state/fault indication
mounted on DIN rails or using screw lugs
Compact dimensions: 94 x 39.5 x 36 mm
Max. continuous operating voltage: 275 V a.c.
Max. continuous operating voltage: 350 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 10 kA
Total discharge current (8/20): 40 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 25 A gG (series connection) / 40 A gG (parallel connection)
Max. load current (a.c.): 25 A
Conductor connection: Push-in
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR 3P TT 275 FM
Part No.: 900439
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal load current (a.c.) / (d.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms. – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / flexible
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Dimensions	2 modules, DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Prodotto 900439 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900439 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord 1P 275 D FM

Single-phase, compact arrester for TT systems with integrated protective circuit for DALI interface.

1 Prodotto

Art. 900438 DCOR 1P 275 D FM

GTIN (EAN) 4013364526891, Codice doganale (EU): 85363030, Peso lordo: 86.27 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord 1P 275 D FM surge arrester
Single-phase surge arrester
DEHNcord according to EN 61643-11
and EN 61643-21 with integrated
protective circuit for communication interface
for use in installation systems
with remote signalling contact, operating state/fault indication
Installed either on a DIN rail or using screw lugs
Compact dimensions: 94 x 39.5 x 36 mm
Technical values (power side):
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection:
25 A gG in series / 40 A gG in parallel
Max. load current 25 A
Technical values (signal side):
Max. continuous operating voltage: 28 V DC
Voltage protection level line-line for In C2: ≤ 50 V
C2 nominal discharge current (8/20 µs) per line: 5 kA
Nominal current at 45°C: 0.3 A
Conductor connection: Push-in
Energy coordination according to DIN EN 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR 1P 275 D FM
Part No.: 900438
or equivalent.

Certificati

Caratteristiche tecniche

Technical data
SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Approvals	KEMA
Signal-side technical data
SPD class	U
Nominal voltage DC (U_N )	24 V
Max. continuous operating voltage (DC) (U_C )	28 V
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series impedance per line	1.8 ohms
Cut-off frequency line-line (100 ohms) (f_G )	10 MHz

Technical data
SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal load current (a.c.) / (d.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms. – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / flexible
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Dimensions	2 modules, DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Signal-side technical data
SPD class	U
Impulse category	C1, C2, C3
Nominal voltage DC (U_N )	24 V
Max. continuous operating voltage (DC) (U_C )	28 V
Nominal current at 45°C (I_L )	0.3 A
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 50 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 710 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 48 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 550 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 40 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 550 V
Series impedance per line	1.8 ohms
Cut-off frequency line-line (100 ohms) (f_G )	10 MHz
Capacitance line-line (C)	≤ 0.64 nF
Capacitance line-PG (C)	≤ 7.7 pF
Operating temperature range (T_U )	-40°C to +80°C
Degree of protection	IP 20
Connection D+, D-/D+', D-'	Push-in / Push-in
Cross-sectional area, solid	0.2–6 mm²
Cross-sectional area, fine-stranded	0.2–6 mm²
Earthing via	PE terminal
Test standards	IEC 61643-21 / EN 61643-21

Prodotto 900438 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900438 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord L 2P

Two-pole surge arrester for all installation systems (1+1 configuration) and luminaires of protection class I; compact design.

2 Prodotti

Art. 900430 DCOR L 2P 275

GTIN (EAN) 4013364157286, Codice doganale (EU): 85363030, Peso lordo: 73.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 2P 275 surge arrester
Two-pole surge arrester for all 230 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA
Total discharge current: 20 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 2P 275
Part No.: 900430
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length: 230 mm (L, N) / 240 mm (PE)
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Prodotto 900430 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900430 è stato aggiunto al carrello.

Apri Web-Shop

Art. 900432 DCOR L 2P 320

GTIN (EAN) 4013364157309, Codice doganale (EU): 85363030, Peso lordo: 74.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 2P 320 surge arrester
Two-pole surge arrester for all 230/277 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 5 kA
Total discharge current: 20 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 2P 320
Part No.: 900432
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 277 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length: 230 mm (L, N) / 240 mm (PE)
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Prodotto 900432 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900432 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord L 1P

Single-pole surge arrester for luminaires of protection class II; compact design.

2 Prodotti

Art. 900431 DCOR L 1P 275

GTIN (EAN) 4013364310827, Codice doganale (EU): 85363030, Peso lordo: 60.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 1P 275 surge arrester
Single-pole surge arrester for all 230 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 1P 275
Part No.: 900431
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Response time [L-N] (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length 230 mm
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Prodotto 900431 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900431 è stato aggiunto al carrello.

Apri Web-Shop

Art. 900433 DCOR L 1P 320

GTIN (EAN) 4013364157316, Codice doganale (EU): 85363030, Peso lordo: 61.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 1P 320 surge arrester
Single-pole surge arrester for all 230/277 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 5 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 1P 320
Part No.: 900433
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 277 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Response time [L-N] (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length 230 mm
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Prodotto 900433 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900433 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord L 2P SN1864

Surge arrester for luminaires of protection class II; compact design. With disconnection in the event of a fault.

1 Prodotto

Art. 999906 DCOR L 2P SN1864

GTIN (EAN) 4013364310926, Codice doganale (EU): 85363030, Peso lordo: 70.50 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

Surge arrester DEHNcord L 2P SN1864
Multi-pole surge arrester Type 2 according to EN 61643-11
for use in cable junction boxes.
With protection of the control phase
Disconnection of the light in case of fault and
integrated visual fault indication
for supply voltage
Max. continuous operating voltage: 275 V ac
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Total discharge current: 20 kA
Max. mains-side overcurrent
protection: 16 A gG
Max. load current AC: 10 A
Energy coordination acc. to DIN EN 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DCOR L 2P SN1864
Part No.: 999906
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Response time [L-N] (t_A )	≤ 25 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, LED head / fuse box for mast installation
Degree of protection of installed device	IP 20
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA

Prodotto 999906 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 999906 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord L 2P SN1860

Surge arrester for all installation systems; compact design. With disconnection of the load circuit in the event of a fault.

1 Prodotto

Art. 999937 DCOR L 2P SN1860

GTIN (EAN) 4013364303195, Codice doganale (EU): 85363030, Peso lordo: 86.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 2P SN1860 surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for installation in junction boxes.
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P SN1860
Part No.: 999937
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 160 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse boxes for mast installation
Degree of protection of installed device	IP 20
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Prodotto 999937 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 999937 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord L 2P 275 SO LTG

Surge arrester for all installation systems; compact design. With disconnection of the load circuit in the event of a fault.

1 Prodotto

Art. 900446 DCOR L 2P 275 SO LTG

GTIN (EAN) 4013364292970, Codice doganale (EU): 85363030, Peso lordo: 62.50 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 2P 275 SO LTG surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for installation in junction boxes.
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P 275 SO LTG
Part No.: 900446
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse boxes for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Prodotto 900446 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900446 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord L 3P 275 SO LTG

Three-pole surge arrester for all installation systems; compact design. With disconnection of the load circuit in the event of a fault and protection of the control phase.

1 Prodotto

Art. 900445 DCOR L 3P 275 SO LTG

GTIN (EAN) 4013364280380, Codice doganale (EU): 85363030, Peso lordo: 71.50 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 3P 275 SO LTG surge arrester
Multipole type 2 surge arrester according to EN 61643-11
for installation in junction boxes.
Protection of the control phase
LED can be disconnected in case of a fault
Integrated separate visual fault indication for the supply voltage and control phase
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Total discharge current (8/20): 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 3P 275 SO LTG
Part No.: 900445
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse box for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Prodotto 900445 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900445 è stato aggiunto al carrello.

Apri Web-Shop

SK EK480 G2S-2d LM DCOR

The EK480 fuse box is a high-quality product from Langmatz which stands out for its excellent workmanship and tried and tested features. The EK480 series meets all mechanical and electrical requirements and standards. This ensures the effective protection of luminaires with high-quality electronics against surges resulting from switching operations or nearby lightning strikes.

1 Prodotto

Art. 900443 SK EK480 G2S-2d LM DCOR

GTIN (EAN) 4013364394322, Codice doganale (EU): 85362010, Peso lordo: 788.00 g, UM: 20.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

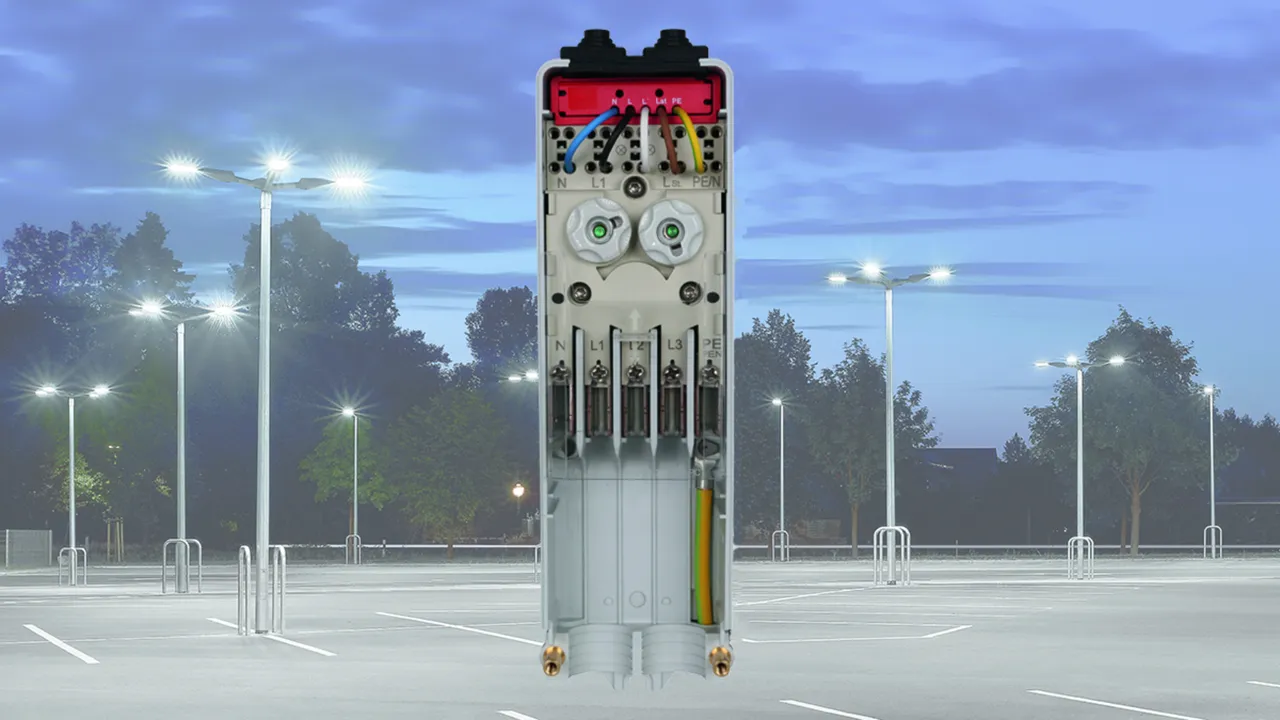

EK480 fuse box with surge arrester
DEHNcord L 3P 275 SO LTG
for protecting LED masts
Protection of the control phase
LED can be disconnected in case of a fault
Integrated separate visual fault indication for the supply voltage and control phase
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Total discharge current (8/20): 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: SK EK480 G2S-2d LM DCOR
Part No.: 900443
or equivalent.

Certificati

Caratteristiche tecniche

Data of fuse box
Dimensions	276 x 81 x 70 mm
For masts with an inside diameter from	89 mm
Clamping technology	incoming: sliding clamp technology / outgoing: spring clamp technology
Max. cross-section of connectable cable	1 - 3 cables (4 or 5 x 16 mm²)
Outgoing terminals	max. 2.5 mm²
Data of DEHNcord L 3P 275 SO LTG surge protective device
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating a.c. voltage [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

Data of fuse box
Designation	EK480 with surge protective device
Dimensions	276 x 81 x 70 mm
For masts with an inside diameter from	89 mm
Enclosure material	polyamide
Enclosure colour	standard colour RAL 7035 light grey
Design	according to DIN 43 628 and VDE 0660 Part 505
Degree of protection	IP 54 according to DIN VDE 0470
Protection class	II
Cover	transparent or grey
Clamping technology	incoming: sliding clamp technology / outgoing: spring clamp technology
Max. cross-section of connectable cable	1 - 3 cables (4 or 5 x 16 mm²)
Outgoing terminals	max. 2.5 mm²
Data of DEHNcord L 3P 275 SO LTG surge protective device
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz) V (50 / 60 Hz)
Max. continuous operating a.c. voltage [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating a.c. voltage [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (a.c.) (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Terminal wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse boxes for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Prodotto 900443 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900443 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord L 2P 275 SO LT

Two-pole surge arrester for TNC systems; compact design. With disconnection of the load circuit in the event of a fault and protection of the control phase.

1 Prodotto

Art. 900435 DCOR L 2P 275 SO LT

GTIN (EAN) 4013364292963, Codice doganale (EU): 85363030, Peso lordo: 70.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 2P 275 SO LT surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for installation in junction boxes.
Protection of the control phase
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P 275 SO LT
Part No.: 900435
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-PEN] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-PEN] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-PEN] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-PEN] (U_P )	≤ 1.5 kV
Voltage protection level [L-PEN] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-PEN] at 1.5 kA (U_P )	≤ 0.85 kV
Response time [L-PEN] (t_A )	≤ 25 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-PEN] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-PEN] (U_T) – Characteristic	440 V / 120 min. – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse box for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Prodotto 900435 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900435 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord L 3P 275 SO IP

Three-pole surge arrester for all installation systems; compact design. IP 65 degree of protection. With disconnection of the load circuit in the event of a fault and protection of the control phase.

1 Prodotto

Art. 900447 DCOR L 3P 275 SO IP

GTIN (EAN) 4013364282216, Codice doganale (EU): 85363030, Peso lordo: 146.60 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 2P 275 SO IP surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for outdoor installation
(IP65 degree of protection) e.g. on junction boxes.
With protection of the control phase
LED can be disconnected in case of a fault
Integrated visual fault indication for the
supply voltage and control phase
With fixing lug
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 3P 275 SO IP
Part No.: 900447
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting cable	1.5 mm², 230 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Degree of protection of installed device	IP 65
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Prodotto 900447 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900447 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord L 2P 275 SO IP

Two-pole arrester for all installation systems; compact design. IP 65 degree of protection. With disconnection of the load circuit in the event of a fault.

1 Prodotto

Art. 900448 DCOR L 2P 275 SO IP

GTIN (EAN) 4013364293007, Codice doganale (EU): 85363030, Peso lordo: 139.90 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord L 2P 275 SO IP surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for outdoor installation
(IP65 degree of protection) e.g. on junction boxes.
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
With fixing lug
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P 275 SO IP
Part No.: 900448
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting cable	1.5 mm², 230 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Degree of protection of installed device	IP 65
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Prodotto 900448 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900448 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord R 3P

Surge arrester for electric Venetian blinds; compact design.

1 Prodotto

Art. 900449 DCOR R 3P 275

GTIN (EAN) 4013364320031, Codice doganale (EU): 85363030, Peso lordo: 151.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNcord R 3P 275 surge arrester
Multipole type 2 surge arrester according to EN 61643-11
for outdoor installation (degree of protection IP54)
for protecting electric sun blinds/blinds or Venetian blinds
Interruption of the load circuit in the event of a fault
For downstream operation
Acoustic fault indication for both protective paths
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 2.5 kA
Total discharge current (8/20) [L+N-PE]: 15 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Nominal load current (a.c.): 10 A
Energy coordination according to IEC/EN 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR R 3P 275
Part No.: 900449
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	2.5 kA
Max. discharge current (8/20 µs) (I_max )	5 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Connector	Hirschmann STAK 3 / STAS 3

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal load current (a.c.) (I_L )	10 A
Nominal discharge current (8/20 µs) (I_n )	2.5 kA
Max. discharge current (8/20 µs) (I_max )	5 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	15 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Acoustic fault indication	yes
Interruption of the load circuit in the event of a fault	yes for downstream operation
Number of ports	1
Connector	Hirschmann STAK 3 / STAS 3
Operating temperature range (T_U )	-20 °C ... +70 °C
Degree of protection of installed device	IP 54

Prodotto 900449 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900449 è stato aggiunto al carrello.

Apri Web-Shop

DEHNcord

Dettagli

DEHNcord 3P TT 275 FM

Art. 900439 DCOR 3P TT 275 FM

Non siete autorizzati per eseguire un download 900439.stp

Non siete autorizzati per eseguire un download 900439.igs

Non siete autorizzati per eseguire un download 900439.jt

Non siete autorizzati per eseguire un download 900439.dwg

Non siete autorizzati per eseguire un download 900439m_D.dxf

Non siete autorizzati per eseguire un download 900439_eplan.zip

Non siete autorizzati per eseguire un download DEHN.900439.wspak

Prodotto 900439 è stato aggiunto al blocco note.

Prodotto 900439 è stato aggiunto al carrello.

DEHNcord 1P 275 D FM

Art. 900438 DCOR 1P 275 D FM

Non siete autorizzati per eseguire un download 900439.stp

Non siete autorizzati per eseguire un download 900439.igs

Non siete autorizzati per eseguire un download 900439.jt

Non siete autorizzati per eseguire un download 900439.dwg

Non siete autorizzati per eseguire un download 900439m_D.dxf

Non siete autorizzati per eseguire un download 900439_eplan.zip

Non siete autorizzati per eseguire un download DEHN.900439.wspak

Prodotto 900438 è stato aggiunto al blocco note.

Prodotto 900438 è stato aggiunto al carrello.

DEHNcord L 2P

Art. 900430 DCOR L 2P 275

Non siete autorizzati per eseguire un download 900430.stp

Non siete autorizzati per eseguire un download 900430.igs

Non siete autorizzati per eseguire un download 900430.jt

Non siete autorizzati per eseguire un download 900430.dwg

Non siete autorizzati per eseguire un download 900430m.dxf

Non siete autorizzati per eseguire un download DEHN.900430.edz

Non siete autorizzati per eseguire un download DEHN.900430.wspak

Prodotto 900430 è stato aggiunto al blocco note.

Prodotto 900430 è stato aggiunto al carrello.

Art. 900432 DCOR L 2P 320

Non siete autorizzati per eseguire un download 900430.stp

Non siete autorizzati per eseguire un download 900430.igs

Non siete autorizzati per eseguire un download 900430.jt

Non siete autorizzati per eseguire un download 900430.dwg

Non siete autorizzati per eseguire un download 900430m.dxf

Non siete autorizzati per eseguire un download DEHN.900432.edz

Non siete autorizzati per eseguire un download DEHN.900432.wspak

Prodotto 900432 è stato aggiunto al blocco note.

Prodotto 900432 è stato aggiunto al carrello.

DEHNcord L 1P

Art. 900431 DCOR L 1P 275

Non siete autorizzati per eseguire un download 900431.stp

Non siete autorizzati per eseguire un download 900431.igs

Non siete autorizzati per eseguire un download 900431.jt

Non siete autorizzati per eseguire un download 900431.dwg

Non siete autorizzati per eseguire un download 900431m.dxf

Non siete autorizzati per eseguire un download DEHN.900431.edz

Non siete autorizzati per eseguire un download DEHN.900431.wspak

Prodotto 900431 è stato aggiunto al blocco note.

Prodotto 900431 è stato aggiunto al carrello.

Art. 900433 DCOR L 1P 320

Non siete autorizzati per eseguire un download 900431.stp

Non siete autorizzati per eseguire un download 900431.igs

Non siete autorizzati per eseguire un download 900431.jt

Non siete autorizzati per eseguire un download 900431.dwg

Non siete autorizzati per eseguire un download 900431m.dxf

Non siete autorizzati per eseguire un download DEHN.900433.edz

Non siete autorizzati per eseguire un download DEHN.900433.wspak

Prodotto 900433 è stato aggiunto al blocco note.

Prodotto 900433 è stato aggiunto al carrello.

DEHNcord L 2P SN1864

Art. 999906 DCOR L 2P SN1864

Non siete autorizzati per eseguire un download 999906.stp

Non siete autorizzati per eseguire un download 999906.igs

Non siete autorizzati per eseguire un download 999906.jt

Non siete autorizzati per eseguire un download 999906.dwg

Non siete autorizzati per eseguire un download 999906m_D.dxf

Non siete autorizzati per eseguire un download DEHN.999906.edz

Non siete autorizzati per eseguire un download DEHN.999906.wspak

Prodotto 999906 è stato aggiunto al blocco note.

Prodotto 999906 è stato aggiunto al carrello.

DEHNcord L 2P SN1860

Art. 999937 DCOR L 2P SN1860

Non siete autorizzati per eseguire un download 999937.stp
