Art. 106115 DIDH 16 530 BP V2A GFK

GTIN (EAN) 4013364100213, Codice doganale (EU): 85389099, Peso lordo: 488.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with rod holder; length: 530 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m)
including concrete base 17 kg.
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 530 mm
Insulating clearance: 445 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 530 BP V2A GFK
Part No.: 106115
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106115 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106115 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106120 DIDH 16 690 BP V2A GFK

GTIN (EAN) 4013364092945, Codice doganale (EU): 85389099, Peso lordo: 552.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

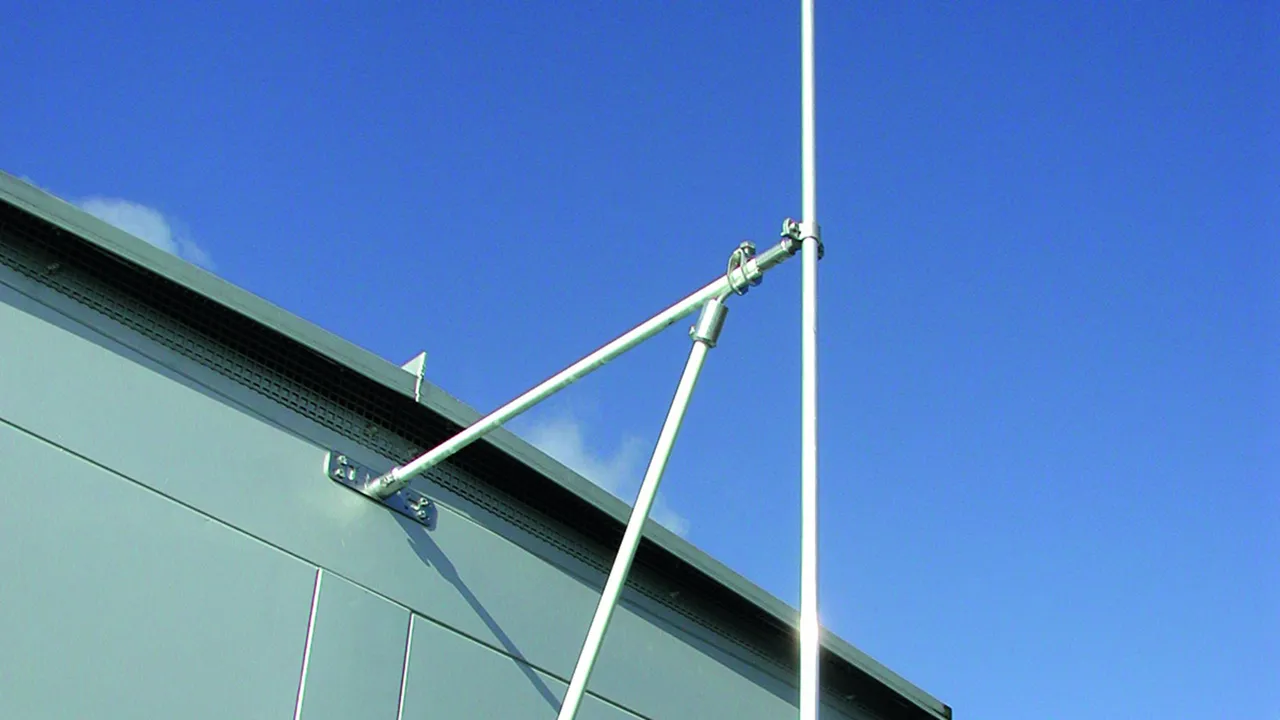

DEHNiso spacer with rod holder; length: 690 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised
The spacers are dimensioned to
Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m)
including concrete base 17 kg.
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 690 mm
Insulating clearance: 605 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 690 BP V2A GFK
Part No.: 106120
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106120 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106120 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106123 DIDH 16 1030 BP V2A GFK

GTIN (EAN) 4013364100220, Codice doganale (EU): 85389099, Peso lordo: 686.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with rod holder; length: 1030 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m)
including concrete base 17 kg.
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 1030 mm
Insulating clearance: 945 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 1030 BP V2A GFK
Part No.: 106123
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106123 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106123 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106090 DIDH 7.10 530 BP V2A GFK

GTIN (EAN) 4013364100190, Codice doganale (EU): 85389099, Peso lordo: 470.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with conductor holder; length: 530 mm, StSt
DEHNiso spacer for fixing conductors
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed (holder distance: 1.0 m, Al, Ø8–10 mm)
of 240 km/h.
Conductor support Rd: 7-10 mm
Material of conductor holder: StSt
Length: 530 mm
Insulating clearance: 445 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 7.10 530 BP V2A GFK
Part No.: 106090
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	240 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	240 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106090 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106090 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106100 DIDH 7.10 690 BP V2A GFK

GTIN (EAN) 4013364092907, Codice doganale (EU): 85389099, Peso lordo: 544.80 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with conductor holder; length: 690 mm, StSt
DEHNiso spacer for fixing conductors
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed (holder distance: 1.0 m, Al, Ø8–10 mm)
of 198 km/h.
Conductor support Rd: 7-10 mm
Material of conductor holder: StSt
Length: 690 mm
Insulating clearance: 605 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 7.10 690 BP V2A GFK
Part No.: 106100
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	198 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather resistant
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	198 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106100 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106100 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106105 DIDH 7.10 1030 BP V2A GFK

GTIN (EAN) 4013364100206, Codice doganale (EU): 85389099, Peso lordo: 658.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with conductor holder; length: 1030 mm, StSt
DEHNiso spacer for ring conductors
installed in a installed in a concrete base (8.5 kg)
with fixing wedge (part no. 102 075)
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed (holder distance: 1.0 m, Al, Ø8–10 mm)
of 140 km/h.
Conductor support Rd: 7-10 mm
Material of conductor holder: StSt
Length: 1030 mm
Insulating clearance: 945 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 7.10 1030 BP V2A GFK
Part No.: 106105
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	140 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	140 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106105 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106105 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106225 DIDH 16 530 RS40.60 V2A

GTIN (EAN) 4013364100299, Codice doganale (EU): 85389099, Peso lordo: 684.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with rod holder; length: 530 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 530 mm
Insulating clearance: 445 mm
Clamping range of pipe: 40-60 mm (1 1/4-2")
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 530 RS40.60 V2A
Part No.: 106225
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106225 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106225 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106226 DIDH 16 690 RS40.60 V2A

GTIN (EAN) 4013364098930, Codice doganale (EU): 85389099, Peso lordo: 722.20 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with rod holder; length: 690 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 690 mm
Insulating clearance: 605 mm
Clamping range of pipe: 40-60 mm (1 1/4-2")
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 690 RS40.60 V2A
Part No.: 106226
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106226 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106226 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106228 DIDH 16 1030 RS40.60 V2A

GTIN (EAN) 4013364100305, Codice doganale (EU): 85389099, Peso lordo: 877.60 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with rod holder; length: 1030 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 1030 mm
Insulating clearance: 945 mm
Clamping range of pipe: 40-60 mm (1 1/4-2")
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 1030 RS40.60 V2A
Part No.: 106228
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106228 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106228 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106245 DIDH 16 530 SB50.300 V2A

GTIN (EAN) 4013364100336, Codice doganale (EU): 85389099, Peso lordo: 561.40 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with rod holder; length: 530 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 530 mm
Insulating clearance: 445 mm
Clamping range of pipe: 50-300 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 530 SB50.300 V2A
Part No.: 106245
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Clamping range of pipe	50-300 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Clamping range of pipe	50-300 mm
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	2-screw cleat
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV stabilised and weather resistant
Dimension of strap (w x d)	25 x 0.3 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106245 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106245 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106246 DIDH 16 690 SB50.300 V2A

GTIN (EAN) 4013364098954, Codice doganale (EU): 85389099, Peso lordo: 608.10 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with rod holder; length: 690 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 690 mm
Insulating clearance: 605 mm
Clamping range of pipe: 50-300 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 690 SB50.300 V2A
Part No.: 106246
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Clamping range of pipe	50-300 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Clamping range of pipe	50-300 mm
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	2-screw cleat
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV stabilised and weather resistant
Dimension of strap (w x d)	25 x 0.3 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106246 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106246 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106248 DIDH 16 1030 SB50.300 V2A

GTIN (EAN) 4013364100343, Codice doganale (EU): 85389099, Peso lordo: 762.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer; length with rod holder: 1030 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 1030 mm
Insulating clearance: 945 mm
Clamping range of pipe: 50-300 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 1030 SB50.300 V2A
Part No.: 106248
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Clamping range of pipe	50-300 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Clamping range of pipe	50-300 mm
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	2-screw cleat
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV stabilised and weather resistant
Dimension of strap (w x d)	25 x 0.3 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106248 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106248 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106160 DIDH 8 675 KT V2A GFK

GTIN (EAN) 4013364092938, Codice doganale (EU): 85389099, Peso lordo: 286.50 g, UM: 1.00 pc(s)

Predecessore

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with DEHNgrip conductor holder; length: 675 mm, StSt
DEHNiso spacer for ring conductors
installed in a concrete base with fixing wedge for maintaining the
separation distance to electrically conductive parts as per DIN
EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The DEHNiso spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed of 176 km/h.
Conductor support Rd: 8 mm
Material of conductor holder: StSt
Length: 675 mm
Insulating clearance: 590 mm
Permanent temperature range: -50 °C ... +100 °C
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm): 104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm): 176 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 8 675 KT V2A GFK
Part No.: 106160
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	8 mm
Material of conductor holder	StSt
Length (l1)	675 mm
Insulating clearance (l2)	590 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm)	104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm)	176 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	8 mm
Material of conductor holder	StSt
Length (l1)	675 mm
Insulating clearance (l2)	590 mm
Application note	for elevated leading of the air termination conductor for increasing the separation distance, fixing in a concrete base for wedge mounting
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	loose
Rod / conductor holder	DEHNgrip
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	Al
Type	UV stabilised and weather resistant
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm)	104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm)	176 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106160 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106160 è stato aggiunto al carrello.

Apri Web-Shop

Art. 106150 DIDH 6.10 675 MMV KT V2A GFK

GTIN (EAN) 4013364092914, Codice doganale (EU): 85389099, Peso lordo: 340.00 g, UM: 1.00 pc(s)

Immagini

Open PDF

Maggior informazioni

File CAD

DEHNiso spacer with MMV clamp, 675 mm long, StSt
DEHNiso spacer with MMV clamp, fixed conductor routing
e.g. for cross points for ring conductors
installed in a concrete base with fixing wedge for maintaining
the separation distance to electrically conductive parts as per
DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The DEHNiso spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed of 176 km/h.
Conductor support Rd: 6-10 mm
Material of conductor holder: StSt
Length: 675 mm
Insulating clearance: 590 mm
Permanent temperature range: -50 °C ... +100 °C
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm): 104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm): 176 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 6.10 675 MMV KT V2A GFK
Part No.: 106150
or equivalent.

Certificati

Caratteristiche tecniche

Conductor support Rd	6-10 mm
Material of conductor holder	StSt
Length (l1)	675 mm
Insulating clearance (l2)	590 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm)	104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm)	176 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	6-10 mm
Material of conductor holder	StSt
Length (l1)	675 mm
Insulating clearance (l2)	590 mm
Application note	for elevated leading of the air termination conductor for increasing the separation distance, fixing in a wedged concrete base
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	MMV clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	Al
Type	UV stabilised and weater resistant
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm)	104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm)	176 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 106150 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 106150 è stato aggiunto al carrello.

Apri Web-Shop

DEHNiso Spacers

Dettagli

With rod holder and fixing plate

Art. 106115 DIDH 16 530 BP V2A GFK

Non siete autorizzati per eseguire un download 106115.stp

Non siete autorizzati per eseguire un download 106115.igs

Non siete autorizzati per eseguire un download 106115.jt

Non siete autorizzati per eseguire un download 106115.dwg

Non siete autorizzati per eseguire un download 106115m_D.dxf

Prodotto 106115 è stato aggiunto al blocco note.

Prodotto 106115 è stato aggiunto al carrello.

Art. 106120 DIDH 16 690 BP V2A GFK

Non siete autorizzati per eseguire un download 106120.stp

Non siete autorizzati per eseguire un download 106120.igs

Non siete autorizzati per eseguire un download 106120.jt

Non siete autorizzati per eseguire un download 106120.dwg

Non siete autorizzati per eseguire un download 106115m_D.dxf

Prodotto 106120 è stato aggiunto al blocco note.

Prodotto 106120 è stato aggiunto al carrello.

Art. 106123 DIDH 16 1030 BP V2A GFK

Non siete autorizzati per eseguire un download 106123.stp

Non siete autorizzati per eseguire un download 106123.igs

Non siete autorizzati per eseguire un download 106123.jt

Non siete autorizzati per eseguire un download 106123.dwg

Non siete autorizzati per eseguire un download 106115m_D.dxf

Prodotto 106123 è stato aggiunto al blocco note.

Prodotto 106123 è stato aggiunto al carrello.

With conductor holder and fixing plate

Art. 106090 DIDH 7.10 530 BP V2A GFK

Non siete autorizzati per eseguire un download 106090.stp

Non siete autorizzati per eseguire un download 106090.igs

Non siete autorizzati per eseguire un download 106090.jt

Non siete autorizzati per eseguire un download 106090.dwg

Non siete autorizzati per eseguire un download 106090m_D.dxf

Prodotto 106090 è stato aggiunto al blocco note.

Prodotto 106090 è stato aggiunto al carrello.

Art. 106100 DIDH 7.10 690 BP V2A GFK

Non siete autorizzati per eseguire un download 106100.stp

Non siete autorizzati per eseguire un download 106100.igs

Non siete autorizzati per eseguire un download 106100.jt

Non siete autorizzati per eseguire un download 106100.dwg

Non siete autorizzati per eseguire un download 106090m_D.dxf

Prodotto 106100 è stato aggiunto al blocco note.

Prodotto 106100 è stato aggiunto al carrello.

Art. 106105 DIDH 7.10 1030 BP V2A GFK

Non siete autorizzati per eseguire un download 106105.stp

Non siete autorizzati per eseguire un download 106105.igs

Non siete autorizzati per eseguire un download 106105.jt

Non siete autorizzati per eseguire un download 106105.dwg

Non siete autorizzati per eseguire un download 106090m_D.dxf

Prodotto 106105 è stato aggiunto al blocco note.

Prodotto 106105 è stato aggiunto al carrello.

With rod holder and pipe clamp

Art. 106225 DIDH 16 530 RS40.60 V2A

Non siete autorizzati per eseguire un download 106225.stp

Non siete autorizzati per eseguire un download 106225.igs

Non siete autorizzati per eseguire un download 106225.jt

Non siete autorizzati per eseguire un download 106225.dwg

Non siete autorizzati per eseguire un download 106225m_D.dxf

Prodotto 106225 è stato aggiunto al blocco note.

Prodotto 106225 è stato aggiunto al carrello.

Art. 106226 DIDH 16 690 RS40.60 V2A

Non siete autorizzati per eseguire un download 106226.stp

Non siete autorizzati per eseguire un download 106226.igs

Non siete autorizzati per eseguire un download 106226.jt

Non siete autorizzati per eseguire un download 106226.dwg

Non siete autorizzati per eseguire un download 106225m_D.dxf

Prodotto 106226 è stato aggiunto al blocco note.

Prodotto 106226 è stato aggiunto al carrello.

Art. 106228 DIDH 16 1030 RS40.60 V2A

Non siete autorizzati per eseguire un download 106228.stp

Non siete autorizzati per eseguire un download 106228.igs

Non siete autorizzati per eseguire un download 106228.jt

Non siete autorizzati per eseguire un download 106228.dwg

Non siete autorizzati per eseguire un download 106225m_D.dxf

Prodotto 106228 è stato aggiunto al blocco note.

Prodotto 106228 è stato aggiunto al carrello.

With rod holder and pipe clamp

Art. 106245 DIDH 16 530 SB50.300 V2A

Non siete autorizzati per eseguire un download 106245.stp
