Art. 952078 DG S 48

GTIN (EAN) 4013364119468, Codice doganale (EU): 85363030, Peso lordo: 120.10 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 48 surge arrester
Modular and pluggable single-pole surge arrester,
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 48 V a.c./60 V d.c.
Voltage protection level: <= 0.33 kV
Nominal discharge current: 7.5 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 48
Part No.: 952078
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	48 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	7.5 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 0.33 kV
Max. mains-side overcurrent protection	125 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	42 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	48 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	7.5 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 0.33 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	70 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	90 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

Prodotto 952078 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952078 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952071 DG S 75

GTIN (EAN) 4013364109834, Codice doganale (EU): 85363030, Peso lordo: 117.60 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 75 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 0.4 kV
Nominal discharge current: 10 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75
Part No.: 952071
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.4 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.4 kV
Voltage protection level at 5 kA (U_P )	≤ 0.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	90 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	20 kA
– Voltage protection level (U_P )	≤ 0.5 kV

Prodotto 952071 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952071 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952072 DG S 150

GTIN (EAN) 4013364109858, Codice doganale (EU): 85363030, Peso lordo: 119.60 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 150 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./200 V d.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 150
Part No.: 952072
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	200 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Voltage protection level at 5 kA (U_P )	≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA

Prodotto 952072 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952072 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952070 DG S 275

GTIN (EAN) 4013364108493, Codice doganale (EU): 85363030, Peso lordo: 140.40 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 275 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275
Part No.: 952070
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL,CSA


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL,CSA
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Prodotto 952070 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952070 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952073 DG S 320

GTIN (EAN) 4013364109872, Codice doganale (EU): 85363030, Peso lordo: 129.90 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 320 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 320 V a.c./420 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 320
Part No.: 952073
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	420 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1.2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA

Prodotto 952073 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952073 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952074 DG S 385

GTIN (EAN) 4013364108516, Codice doganale (EU): 85363030, Peso lordo: 133.50 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 385 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385
Part No.: 952074
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Voltage protection level at 5 kA (U_P )	≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	385 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA

Prodotto 952074 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952074 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952075 DG S 440

GTIN (EAN) 4013364109896, Codice doganale (EU): 85363030, Peso lordo: 152.70 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 440 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 440 V a.c./585 V d.c.
Voltage protection level: <= 2 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 440
Part No.: 952075
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	585 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Voltage protection level at 5 kA (U_P )	≤ 1.7 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	580 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	765 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA

Prodotto 952075 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952075 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952076 DG S 600

GTIN (EAN) 4013364109919, Codice doganale (EU): 85363030, Peso lordo: 146.90 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 600 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Voltage protection level: <= 2.5 kV
Nominal discharge current: 15 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 600
Part No.: 952076
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, VDE, UL, CSA


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	600 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 5 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	700 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installations
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	600 V
– Nominal AC voltage (U_N )	480 V
– Nominal frequency AC (f_N )	16.7 Hz

Prodotto 952076 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952076 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952098 DG S 48 FM

GTIN (EAN) 4013364119475, Codice doganale (EU): 85363030, Peso lordo: 133.86 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 48 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 48 V a.c./60 V d.c.
Voltage protection level: <= 0.33 kV
Nominal discharge current: 7.5 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 48 FM
Part No.: 952098
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	48 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	7.5 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 0.33 kV
Max. mains-side overcurrent protection	125 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	42 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	48 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	7.5 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 0.33 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	70 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	90 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Prodotto 952098 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952098 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952091 DG S 75 FM

GTIN (EAN) 4013364109841, Codice doganale (EU): 85363030, Peso lordo: 120.40 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 75 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 0.4 kV
Nominal discharge current: 10 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75 FM
Part No.: 952091
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.4 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.4 kV
Voltage protection level at 5 kA (U_P )	≤ 0.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	90 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	20 kA
– Voltage protection level (U_P )	≤ 0.5 kV

Prodotto 952091 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952091 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952092 DG S 150 FM

GTIN (EAN) 4013364109865, Codice doganale (EU): 85363030, Peso lordo: 123.50 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 150 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./200 V d.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 150 FM
Part No.: 952092
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	200 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Voltage protection level at 5 kA (U_P )	≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Prodotto 952092 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952092 è stato aggiunto al carrello.

Apri Web-Shop

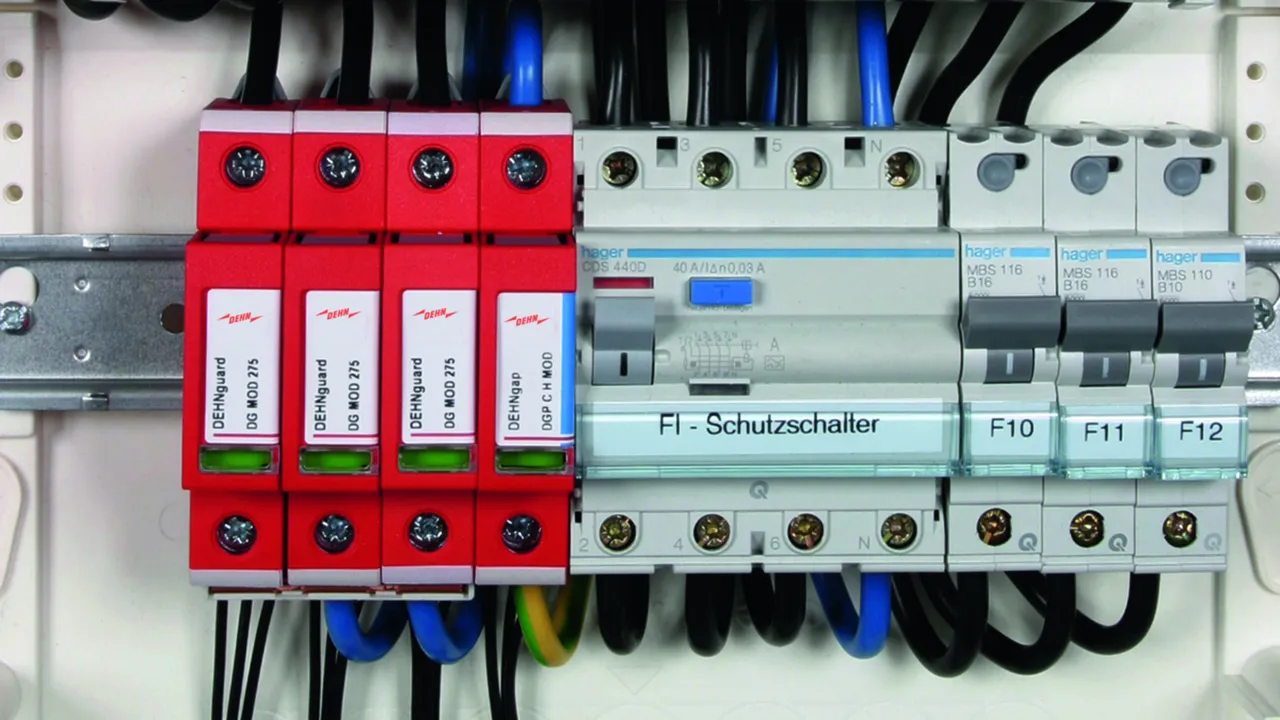

Art. 952090 DG S 275 FM

GTIN (EAN) 4013364108509, Codice doganale (EU): 85363030, Peso lordo: 133.00 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 275 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275 FM
Part No.: 952090
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Prodotto 952090 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952090 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952093 DG S 320 FM

GTIN (EAN) 4013364109889, Codice doganale (EU): 85363030, Peso lordo: 147.70 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 320 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 320 V a.c./420 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 320 FM
Part No.: 952093
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	420 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1.2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Prodotto 952093 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952093 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952094 DG S 385 FM

GTIN (EAN) 4013364108523, Codice doganale (EU): 85363030, Peso lordo: 150.40 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 385 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385 FM
Part No.: 952094
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Voltage protection level at 5 kA (U_P )	≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	385 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Prodotto 952094 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952094 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952095 DG S 440 FM

GTIN (EAN) 4013364109902, Codice doganale (EU): 85363030, Peso lordo: 150.70 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 440 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 440 V a.c./585 V d.c.
Voltage protection level: <= 2 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 440 FM
Part No.: 952095
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	585 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Voltage protection level at 5 kA (U_P )	≤ 1.7 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	580 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	765 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Prodotto 952095 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952095 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952096 DG S 600 FM

GTIN (EAN) 4013364109926, Codice doganale (EU): 85363030, Peso lordo: 170.70 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNguard S 600 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Voltage protection level: <= 2.5 kV
Nominal discharge current: 15 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 600 FM
Part No.: 952096
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	600 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 5 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	700 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	600 V
– Nominal AC voltage (U_N )	480 V
– Nominal frequency AC (f_N )	16.7 Hz

Prodotto 952096 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952096 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952077 DG S WE 600

GTIN (EAN) 4013364119680, Codice doganale (EU): 85363030, Peso lordo: 147.40 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNguard S WE 600 surge arrester
Pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Rated varistor voltage: 750 V a.c.
Voltage protection level: <= 3 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S WE 600
Part No.: 952077
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (a.c.) (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Voltage protection level at 5 kA (U_P )	≤ 2.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	900 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, UL, CSA

Prodotto 952077 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952077 è stato aggiunto al carrello.

Apri Web-Shop

Art. 952097 DG S WE 600 FM

GTIN (EAN) 4013364119697, Codice doganale (EU): 85363030, Peso lordo: 150.50 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNguard S WE 600 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Rated varistor voltage: 750 V a.c.
Voltage protection level: <= 3 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S WE 600 FM
Part No.: 952097
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (a.c.) (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Voltage protection level at 5 kA (U_P )	≤ 2.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	900 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Prodotto 952097 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952097 è stato aggiunto al carrello.

Apri Web-Shop

DEHNguard S

DEHNguard S ...

Art. 952078 DG S 48

Non siete autorizzati per eseguire un download 952070.stp

Non siete autorizzati per eseguire un download 952070.igs

Non siete autorizzati per eseguire un download 952070.jt

Non siete autorizzati per eseguire un download 952070.dwg

Non siete autorizzati per eseguire un download 952070m_E.dxf

Non siete autorizzati per eseguire un download DEHN.952078.wspak

Non siete autorizzati per eseguire un download DEHN.952078.edz

Prodotto 952078 è stato aggiunto al blocco note.

Prodotto 952078 è stato aggiunto al carrello.

Art. 952071 DG S 75

Non siete autorizzati per eseguire un download 952070.stp

Non siete autorizzati per eseguire un download 952070.igs

Non siete autorizzati per eseguire un download 952070.jt

Non siete autorizzati per eseguire un download 952070.dwg

Non siete autorizzati per eseguire un download 952070m_E.dxf

Non siete autorizzati per eseguire un download DEHN.952071.wspak

Non siete autorizzati per eseguire un download DEHN.952071.edz

Prodotto 952071 è stato aggiunto al blocco note.

Prodotto 952071 è stato aggiunto al carrello.

Art. 952072 DG S 150

Non siete autorizzati per eseguire un download 952070.stp

Non siete autorizzati per eseguire un download 952070.igs

Non siete autorizzati per eseguire un download 952070.jt

Non siete autorizzati per eseguire un download 952070.dwg

Non siete autorizzati per eseguire un download 952070m_E.dxf

Non siete autorizzati per eseguire un download DEHN.952072.wspak

Non siete autorizzati per eseguire un download DEHN.952072.edz

Prodotto 952072 è stato aggiunto al blocco note.

Prodotto 952072 è stato aggiunto al carrello.

Art. 952070 DG S 275

Non siete autorizzati per eseguire un download 952070.stp

Non siete autorizzati per eseguire un download 952070.igs

Non siete autorizzati per eseguire un download 952070.jt

Non siete autorizzati per eseguire un download 952070.dwg

Non siete autorizzati per eseguire un download 952070m_E.dxf

Non siete autorizzati per eseguire un download DEHN.952070.wspak

Non siete autorizzati per eseguire un download 952070_eplan.zip

Prodotto 952070 è stato aggiunto al blocco note.

Prodotto 952070 è stato aggiunto al carrello.

Art. 952073 DG S 320

Non siete autorizzati per eseguire un download 952070.stp

Non siete autorizzati per eseguire un download 952070.igs

Non siete autorizzati per eseguire un download 952070.jt

Non siete autorizzati per eseguire un download 952070.dwg

Non siete autorizzati per eseguire un download 952070m_E.dxf

Non siete autorizzati per eseguire un download DEHN.952073.wspak

Non siete autorizzati per eseguire un download DEHN.952073.edz

Prodotto 952073 è stato aggiunto al blocco note.

Prodotto 952073 è stato aggiunto al carrello.

Art. 952074 DG S 385

Non siete autorizzati per eseguire un download 952070.stp

Non siete autorizzati per eseguire un download 952070.igs

Non siete autorizzati per eseguire un download 952070.jt

Non siete autorizzati per eseguire un download 952070.dwg

Non siete autorizzati per eseguire un download 952070m_E.dxf

Non siete autorizzati per eseguire un download DEHN.952074.wspak

Non siete autorizzati per eseguire un download DEHN.952074.edz

Prodotto 952074 è stato aggiunto al blocco note.

Prodotto 952074 è stato aggiunto al carrello.

Art. 952075 DG S 440

Non siete autorizzati per eseguire un download 952070.stp

Non siete autorizzati per eseguire un download 952070.igs

Non siete autorizzati per eseguire un download 952070.jt

Non siete autorizzati per eseguire un download 952070.dwg

Non siete autorizzati per eseguire un download 952070m_E.dxf

Non siete autorizzati per eseguire un download DEHN.952075.wspak

Non siete autorizzati per eseguire un download DEHN.952075.edz

Prodotto 952075 è stato aggiunto al blocco note.

Prodotto 952075 è stato aggiunto al carrello.

Art. 952076 DG S 600

Non siete autorizzati per eseguire un download 952070.stp

Non siete autorizzati per eseguire un download 952070.igs

Non siete autorizzati per eseguire un download 952070.jt

Non siete autorizzati per eseguire un download 952070.dwg

Non siete autorizzati per eseguire un download 952070m_E.dxf

Non siete autorizzati per eseguire un download DEHN.952076.wspak

Non siete autorizzati per eseguire un download DEHN.952076.edz
