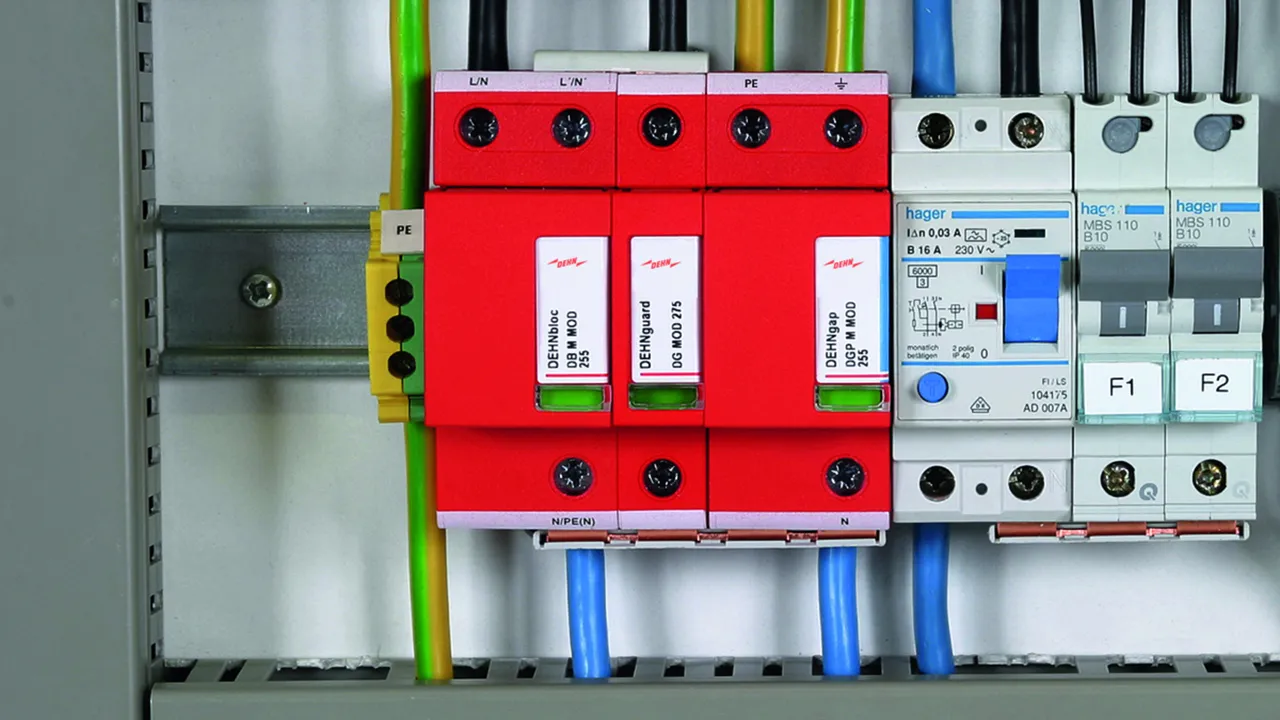

DEHNgap

Discharge capacity up to 100 kA (10/350 µs)
Total current arrester specifically designed for installation in 3+1 and 1+1 configurations of TT systems according to IEC 60364-5-53 between neutral conductor N and protective conductor PE
Creepage discharge spark gap technology
Operating state / fault indication by green / red indicator flag in the inspection window

Dettagli

DEHNgap M 255 (FM)

Single-pole, modular coordinated N-PE lightning current arrester for U_C= 255 V; optionally available with remote signalling contact for monitoring device (floating changeover contact).

2 Prodotti

Art. 961101 DGP M 255

GTIN (EAN) 4013364118676, Codice doganale (EU): 85363030, Peso lordo: 331.00 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

Coordinated DEHNgap M 255 N-PE lightning current arrester
Modular, pluggable and coordinated single-pole N-PE lightning
current arrester, width: 2 modules
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creepage discharge spark gap
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 1.5 kV
Follow current extinguishing capability: 100 kArms at 255 V a.c.
TOV resistance: 1200 V/200 ms
Energy-coordinated according to IEC 62305-4
with DEHNgap C S N-PE arresters of the Red/Line series

Brand: DEHN
Type: DGP M 255
Part No.: 961101
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	VDE, KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	VDE, KEMA, UL

Prodotto 961101 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 961101 è stato aggiunto al carrello.

Apri Web-Shop

Art. 961105 DGP M 255 FM

GTIN (EAN) 4013364118683, Codice doganale (EU): 85363030, Peso lordo: 336.00 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

Coordinated DEHNgap M 255 FM N-PE lightning current arrester
Single-pole, modular, pluggable and coordinated N-PE lightning
current arrester, width: 2 modules
with remote signalling contact
Type 1 arrester as per EN 61643-11
RADAX Flow spark gap technology
Fault indication
flag in the inspection window
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 1.5 kV
Follow current extinguishing capability: 100 Arms at 255 V AC
TOV withstand: 1,200 V/200 ms
Energy coordination according to DIN EN 62305-4
directly to DEHNgap C S N-PE arresters of the Red/Line series

Brand: DEHN
Type: DGP M 255 FM
Part No.: 961105
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	VDE, KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	VDE, KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Prodotto 961105 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 961105 è stato aggiunto al carrello.

Apri Web-Shop

DEHNgap Maxi 1 255 S

Coordinated single-pole N-PE lightning current arrester for busbars.

1 Prodotto

Art. 900050 DGPM 1 255 S

GTIN (EAN) 4013364107496, Codice doganale (EU): 85363030, Peso lordo: 539.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNgap Maxi 1 255 S N-PE lightning current arrester
Single-pole, coordinated N-PE lightning current arrester
for industrial busbar systems
Type 1 arrester as per EN 61643-11
RADAX Flow spark gap technology
Max. continuous operating voltage: 255 V AC
Voltage protection level: <= 2.5 kV (including 80 cm connecting cable)
Lightning impulse current (10/350): 100 kA
Follow current extinguishing capability: 100 Arms
TOV withstand: 1,200 V/200 ms
Energy coordination DIN EN 62305-4
Arrester of the Red/Line series
Installation on N busbars min. 35 mm2
Dimensions (W x H x D): (72 x 89 x 100) mm

Brand: DEHN
Type: DGPM 1 255 S
Part No.: 900050
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 2.5 kV (including 80 cm connecting cable)
Operating state monitoring	via DEHNsignal DSI E 3

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV (including 80 cm connecting cable)
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Number of ports	1
For mounting on	N busbars, min. 35 mm²
Connection	via cable lug, min. 35 mm² / max. 50 mm²
Operating state monitoring	via DEHNsignal DSI E 3
Connection for DSI E 3 (S) (min.)	1 mm²solid / flexible
Connection for DSI E 3 (S) (max.)	2.5 mm²solid / flexible
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Dimensions (W x H x D)	72 x 89 x 100 mm

Prodotto 900050 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 900050 è stato aggiunto al carrello.

Apri Web-Shop

DEHNgap Maxi 1 255 (FM)

Coordinated single-pole N-PE lightning current arrester; FM version with floating remote signalling contact.

2 Prodotti

Art. 961180 DGPM 1 255

GTIN (EAN) 4013364157323, Codice doganale (EU): 85363090, Peso lordo: 460.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNgap Maxi 1 255 N-PE lightning current arrester
Coordinated N-PE lightning current arrester, width: 2 modules
Type 1 arrester as per EN 61643-11
RADAX Flow spark gap technology
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 1.5 kV
Follow current extinguishing capability: 100 Arms at 255 V AC
TOV withstand: 1,200 V/200 ms

Brand: DEHN
Type: DGPM 1 255
Part No.: 961180
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA

Prodotto 961180 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 961180 è stato aggiunto al carrello.

Apri Web-Shop

Art. 961185 DGPM 1 255 FM

GTIN (EAN) 4013364157330, Codice doganale (EU): 85363090, Peso lordo: 460.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNgap Maxi 1 255 FM N-PE lightning current arrester
Coordinated N-PE lightning current arrester, width: 2 modules
with remote signalling contact
Type 1 arrester as per EN 61643-11
RADAX Flow spark gap technology
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 1.5 kV
Follow current extinguishing capability: 100 Arms at 255 V AC
TOV withstand: 1,200 V/200 ms

Brand: DEHN
Type: DGPM 1 255 FM
Part No.: 961185
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Prodotto 961185 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 961185 è stato aggiunto al carrello.

Apri Web-Shop

DEHNgap Maxi 440 (FM)

Coordinated single-pole N-PE lightning current arrester; FM version with floating remote signalling contact.

2 Prodotti

Art. 961160 DGPM 440

GTIN (EAN) 4013364116290, Codice doganale (EU): 85363030, Peso lordo: 415.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNgap Maxi 440 N-PE lightning current arrester
Coordinated N-PE lightning current arrester, width: 2 modules
Type 1 arrester as per EN 61643-11
RADAX Flow spark gap technology
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 2.5 kV
Follow current extinguishing capability: 100 Arms at 440 V AC
TOV withstand: 1,200 V/200 ms

Brand: DEHN
Type: DGPM 440
Part No.: 961160
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 2.5 kV
Approvals	UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL

Prodotto 961160 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 961160 è stato aggiunto al carrello.

Apri Web-Shop

Art. 961165 DGPM 440 FM

GTIN (EAN) 4013364116306, Codice doganale (EU): 85363030, Peso lordo: 418.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

File CAD

DEHNgap Maxi 440 FM N-PE lightning current arrester
Coordinated N-PE lightning current arrester, width: 2 modules
with remote signalling contact
Type 1 arrester as per EN 61643-11
RADAX Flow spark gap technology
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 2.5 kV
Follow current extinguishing capability: 100 Arms at 440 V AC
TOV withstand: 1,200 V/200 ms

Brand: DEHN
Type: DGPM 440 FM
Part No.: 961165
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 2.5 kV
Approvals	UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Prodotto 961165 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 961165 è stato aggiunto al carrello.

Apri Web-Shop

DEHNgap H M 255

Modular single-pole N-PE lightning current arrester.

1 Prodotto

Art. 961102 DGPH M 255

GTIN (EAN) 4013364118690, Codice doganale (EU): 85363030, Peso lordo: 300.00 g, UM: 1.00 pc(s)

Predecessore

Immagini

Maggior informazioni

File CAD

DEHNgap H M 255 N-PE lightning current arrester
Modular, pluggable and coordinated single-pole N-PE
lightning current arrester, width: 2 modules
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creeping discharge spark gap
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 4 kV
Follow current extinguishing capability: 100 Arms at 255 V a.c.
TOV resistance: 1200 V/200 ms
Energy-coordinated according to IEC 62305-4
with DEHNgap C S N-PE arresters of the Red/Line series

Brand: DEHN
Type: DGPH M 255
Part No.: 961102
or equivalent.

Certificati

Caratteristiche tecniche

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 4 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 4 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Number of ports	1
Cross-sectional area (min.)	10 mm²solid / flexible
Cross-sectional area (max.)	50 mm²stranded / 35 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880

Prodotto 961102 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 961102 è stato aggiunto al carrello.

Apri Web-Shop

Results for products (0)

Results for content (0)

DEHNgap

Dettagli
