Roof Conductor Holders with Adhesive Pad
:quality(98)/dehn.it/store/f/57296300/HDVORSCHAU/297120a1_16-9.jpg)
:quality(98)/dehn.it/store/f/57296300/HDVORSCHAU/297120a1_16-9.jpg)

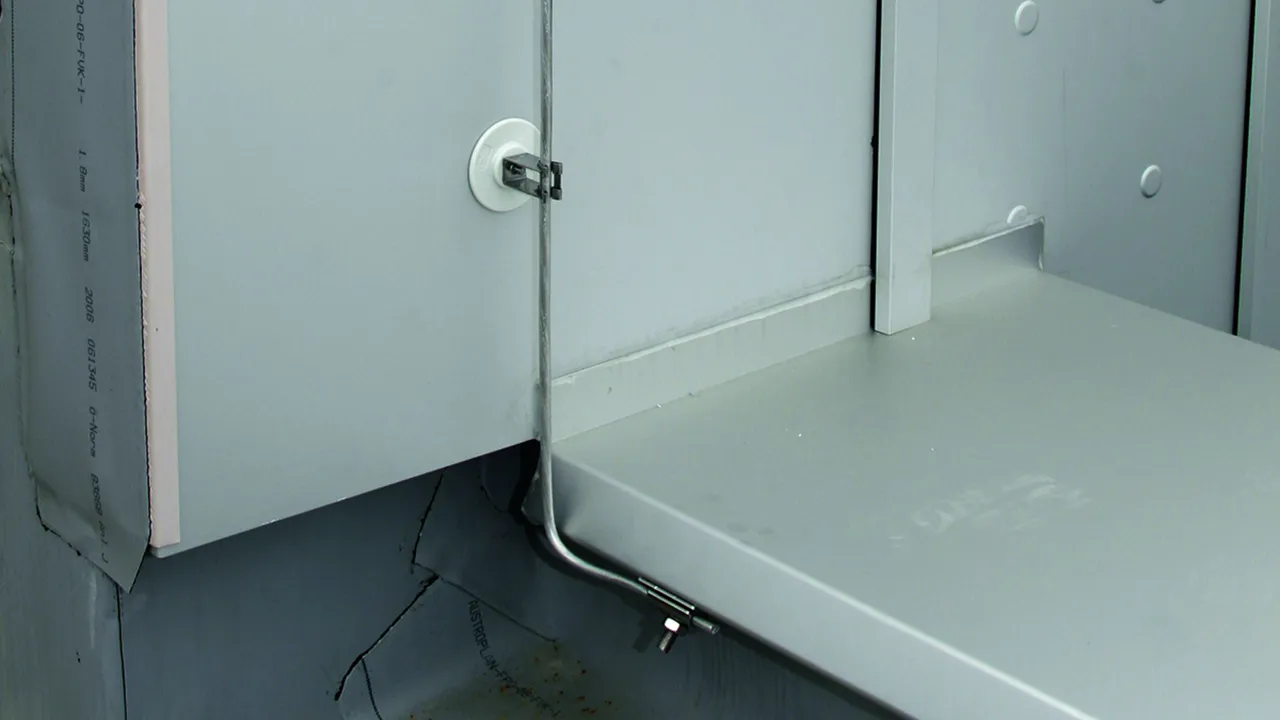

The conductor holder can be used on smooth (unstructured) surfaces such as metal roofs / metal surfaces. The conductor holders are stuck to the roof (remove protective backing).
Clean the surface with the special cleaning liquid (Part No. 297 199) as indicated in the installation instructions.
One litre of the special cleaner is sufficient for approx. 1000 adhesive pads.
The roof conductor holders shall be installed at a temperature of ≥ +15 °C.
Robust, weather-resistant and UV-stabilsed type, halogen-free.
Art. 297130 DLH DS 8 H16 KP K AL
GTIN (EAN) 4013364492523, Codice doganale (EU): 85389099, Peso lordo: 19.84 g, UM: 50.00 pc(s)
:quality(98)/dehn.it/store/f/57296310/HDVORSCHAU/297130.jpg)
:quality(98)/dehn.it/store/f/57296310/HDVORSCHAU/297130.jpg)
:quality(98)/dehn.it/store/f/57296311/HDVORSCHAU/297130m_D.jpg)
:quality(98)/dehn.it/store/f/57296311/HDVORSCHAU/297130m_D.jpg)
Caratteristiche tecniche
| Brace material | Aluminium – formable |
| Material of conductor holder | Plastic |
| Colour of conductor holder | grey ● |
| Conductor support Rd | 8 mm |
| Type of conductor holder | DEHNsnap |
| Height of conductor holder | 16 mm |
| Conductor routing | loose |
| Dimensions | as per CAD |
Art. 297140 DLH DG 8 H20 KP V2A AL
GTIN (EAN) 4013364492530, Codice doganale (EU): 85389099, Peso lordo: 28.40 g, UM: 50.00 pc(s)
:quality(98)/dehn.it/store/f/57296322/HDVORSCHAU/297140.jpg)
:quality(98)/dehn.it/store/f/57296322/HDVORSCHAU/297140.jpg)
:quality(98)/dehn.it/store/f/57296323/HDVORSCHAU/297140m_D.jpg)
:quality(98)/dehn.it/store/f/57296323/HDVORSCHAU/297140m_D.jpg)
Caratteristiche tecniche
| Brace material | Aluminium – formable |
| Material of conductor holder | StSt |
| Conductor support Rd | 8 mm |
| Type of conductor holder | DEHNgrip |
| Height of conductor holder | 20 mm |
| Conductor routing | loose |
| Dimensions | as per CAD |
Art. 297110 DLH DS 8 H36 KP67 K GR
GTIN (EAN) 4013364100886, Codice doganale (EU): 85389099, Peso lordo: 34.72 g, UM: 50.00 pc(s)
:quality(98)/dehn.it/store/f/57296335/HDVORSCHAU/297110.jpg)
:quality(98)/dehn.it/store/f/57296335/HDVORSCHAU/297110.jpg)
:quality(98)/dehn.it/store/f/57296336/HDVORSCHAU/297110m_D.jpg)
:quality(98)/dehn.it/store/f/57296336/HDVORSCHAU/297110m_D.jpg)
Caratteristiche tecniche
| Base plate material | plastic |
| Base plate colour | grey ● |
| Material of conductor holder | plastic |
| Colour of conductor holder | grey ● |
| Conductor support Rd | 8 mm |
| Type of conductor holder | DEHNsnap |
| Height of conductor holder | 36 mm |
| Conductor routing | loose |
| Dimensions | Ø 67 mm |
Art. 297120 DLH DG 8 H32 KP67 V2A K GR
GTIN (EAN) 4013364100916, Codice doganale (EU): 85389099, Peso lordo: 46.00 g, UM: 50.00 pc(s)
:quality(98)/dehn.it/store/f/57296347/HDVORSCHAU/297120.jpg)
:quality(98)/dehn.it/store/f/57296347/HDVORSCHAU/297120.jpg)
:quality(98)/dehn.it/store/f/57296348/HDVORSCHAU/297120m_D.jpg)
:quality(98)/dehn.it/store/f/57296348/HDVORSCHAU/297120m_D.jpg)
Caratteristiche tecniche
| Base plate material | plastic |
| Base plate colour | grey ● |
| Material of conductor holder | StSt |
| Conductor support Rd | 8 mm |
| Type of conductor holder | DEHNgrip |
| Height of conductor holder | 32 mm |
| Conductor routing | loose |
| Dimensions | Ø 67 mm |
| Standard | EN 62561-4 |
