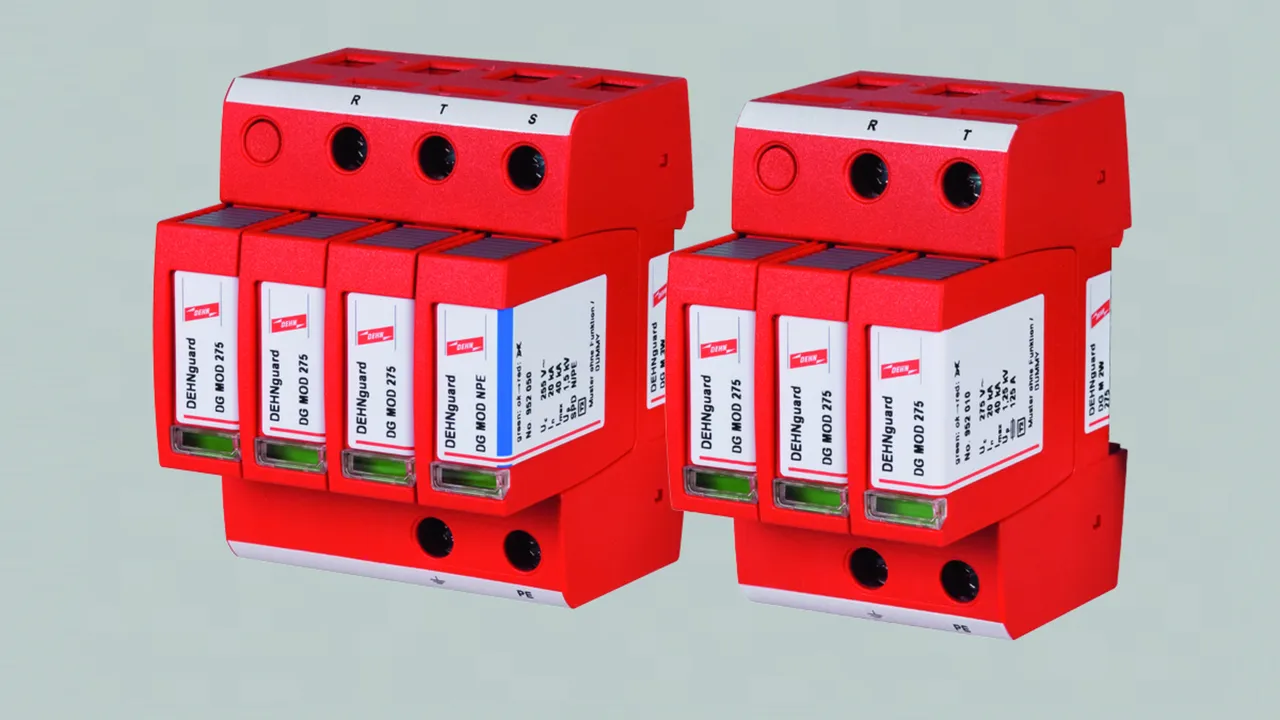

DEHNguard modular JAPAN

Complete prewired unit consisting of a base part and plug-in protection modules
Energy-coordinated within the Red/Line product family
High discharge capacity due to powerful zinc oxide varistors/spark gaps
High reliability due to "Thermo Dynamic Control" SPD monitoring device
Multifunctional terminals for connection of conductors and busbars
Allows for easy replacing of protection modules by module locking system with releasing button
Tested for vibration- and shock-proofness acc. to EN 60068-2

DG M 2W 150

Modular surge arrester for use in 1Ø2W100V power supply systems

1 Prodotto

Art. 952118 DG M 2W 150

GTIN (EAN) 4013364113831, Codice doganale (EU): 85363030, Peso lordo: 234.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	1Ø2W100V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) [R-N] (I_n )	15 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R-N] (U_P )	≤ 0.7 kV
Voltage protection level [R-N] for 5 kA (U_P )	≤ 0.55 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-N] (U_T)	Single-phase system - No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	2 mods., DIN 43880
Approvals	UL

Prodotto 952118 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952118 è stato aggiunto al carrello.

Apri Web-Shop

DG M 2W 150 FM

Modular surge arrester for use in 1Ø2W100V power supply systems; with floating remote signalling contact

1 Prodotto

Art. 952119 DG M 2W 150 FM

GTIN (EAN) 4013364113848, Codice doganale (EU): 85363030, Peso lordo: 232.60 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	1Ø2W100V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) [R-N] (I_n )	15 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R-N] (U_P )	≤ 0.7 kV
Voltage protection level [R-N] for 5 kA (U_P )	≤ 0.55 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-N] (U_T)	Single-phase system - No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	2 mods., DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Prodotto 952119 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952119 è stato aggiunto al carrello.

Apri Web-Shop

DG M 3W 275

Modular surge arrester for use in 3Ø3W200V power supply systems

1 Prodotto

Art. 952331 DG M 3W 275

GTIN (EAN) 4013364114036, Codice doganale (EU): 85363030, Peso lordo: 419.80 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R-T,T-S,R-S] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [S-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [S-PE] (I_imp )	12 kA
Voltage protection level [R-T, T-S, R-S] (U_P )	≤ 1.5 kV
Voltage protection level [R-T, T-S, R-S] for 5 kA (U_C )	≤ 1 V
Voltage protection level [S-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [S-PE] (a.c.) (I_fi )	100 A_rms
Response time [R-T,T-S,R-S] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-T,S-T,R-S] (U_T)	No TOV test required
Temporary overvoltage [S-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [S-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL

Prodotto 952331 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952331 è stato aggiunto al carrello.

Apri Web-Shop

DG M 3W 275 FM

Modular surge arrester for use in 3Ø3W200V power supply systems; with floating remote signalling contact

1 Prodotto

Art. 952339 DG M 3W 275 FM

GTIN (EAN) 4013364114043, Codice doganale (EU): 85363030, Peso lordo: 441.30 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R-T,T-S,R-S] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [S-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [S-PE] (I_imp )	12 kA
Voltage protection level [R-T, T-S, R-S] (U_P )	≤ 1.5 kV
Voltage protection level [R-T, T-S, R-S] for 5 kA (U_C )	≤ 1 V
Voltage protection level [S-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [S-PE] (a.c.) (I_fi )	100 A_rms
Response time [R-T,T-S,R-S] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-T,S-T,R-S] (U_T)	No TOV test required
Temporary overvoltage [S-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [S-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL
Type of remote signalling contact	Wechsler
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Prodotto 952339 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952339 è stato aggiunto al carrello.

Apri Web-Shop

DG M 4W 275

Modular surge arrester for use in 3Ø3W200V * 1Ø3W100/200V power supply systems

1 Prodotto

Art. 952431 DG M 4W 275

GTIN (EAN) 4013364114098, Codice doganale (EU): 85363030, Peso lordo: 430.30 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V*1Ø3W100/200V
Maximum continuous operating voltage (a.c.) [R,S,T-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [R,S,T-N] (I_n )	20 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R,S,T-N] (U_P )	≤ 1.5 kV
Voltage protection level [R,S,T-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R,S,T-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R,S,T-N] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL

Prodotto 952431 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952431 è stato aggiunto al carrello.

Apri Web-Shop

DG M 4W 275 FM

Modular surge arrester for use in 3Ø3W200V power supply systems; with floating remote signalling contact

1 Prodotto

Art. 952439 DG M 4W 275 FM

GTIN (EAN) 4013364114104, Codice doganale (EU): 85363030, Peso lordo: 429.40 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V*1Ø3W100/200V
Maximum continuous operating voltage (a.c.) [R,S,T-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [R,S,T-N] (I_n )	20 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R,S,T-N] (U_P )	≤ 1.5 kV
Voltage protection level [R,S,T-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R,S,T-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R,S,T-N] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Prodotto 952439 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952439 è stato aggiunto al carrello.

Apri Web-Shop

DG M 3W 275 150

Modular surge arrester for use in 1Ø3W100/200V power supply systems

1 Prodotto

Art. 952321 DG M 3W 275 150

GTIN (EAN) 4013364114067, Codice doganale (EU): 85363030, Peso lordo: 398.00 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	1Ø3W100/200V
Maximum continuous operating voltage (a.c.) [R-T] (U_C )	275 V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R,T-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) [R-T] (I_n )	20 kA
Nominal discharge current (8/20 μs) [R,T-N] (I_n )	15 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R-T] (U_P )	≤ 1.5 kV
Voltage protection level [R-T] for 5 kA (U_P )	≤ 1 kV
Voltage protection level [R, T-N] (U_P )	≤ 0.7 kV
Voltage protection level [R,T-N] for 5 kA (U_P )	≤ 0.55 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R-N,T-N,R-T] (t_A )	≤ 25 ns
Response time [R-T] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-T] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [R,T-N] (U_T) – Characteristic	220 V / 120 min. – Safe failure
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL

Prodotto 952321 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952321 è stato aggiunto al carrello.

Apri Web-Shop

DG M 3W 275 150 FM

Modular surge arrester for use in 1Ø3W100/200V power supply systems; with floating remote signalling contact

1 Prodotto

Art. 952329 DG M 3W 275 150 FM

GTIN (EAN) 4013364114074, Codice doganale (EU): 85363030, Peso lordo: 441.30 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	1Ø3W100/200V
Maximum continuous operating voltage (a.c.) [R-T] (U_C )	275 V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R,T-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) [R-T] (I_n )	20 kA
Nominal discharge current (8/20 μs) [R,T-N] (I_n )	15 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R-T] (U_P )	≤ 1.5 kV
Voltage protection level [R-T] for 5 kA (U_P )	≤ 1 kV
Voltage protection level [R, T-N] (U_P )	≤ 0.7 kV
Voltage protection level [R,T-N] for 5 kA (U_P )	≤ 0.55 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R-N,T-N,R-T] (t_A )	≤ 25 ns
Response time [R-T] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-T] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [R,T-N] (U_T) – Characteristic	220 V / 120 min. – Safe failure
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Prodotto 952329 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 952329 è stato aggiunto al carrello.

Apri Web-Shop

Results for products (0)

Results for content (0)

DEHNguard modular JAPAN

DG M 2W 150

Art. 952118 DG M 2W 150

Prodotto 952118 è stato aggiunto al blocco note.

Prodotto 952118 è stato aggiunto al carrello.

DG M 2W 150 FM

Art. 952119 DG M 2W 150 FM

Prodotto 952119 è stato aggiunto al blocco note.

Prodotto 952119 è stato aggiunto al carrello.

DG M 3W 275

Art. 952331 DG M 3W 275

Prodotto 952331 è stato aggiunto al blocco note.

Prodotto 952331 è stato aggiunto al carrello.

DG M 3W 275 FM

Art. 952339 DG M 3W 275 FM

Prodotto 952339 è stato aggiunto al blocco note.

Prodotto 952339 è stato aggiunto al carrello.

DG M 4W 275

Art. 952431 DG M 4W 275

Prodotto 952431 è stato aggiunto al blocco note.

Prodotto 952431 è stato aggiunto al carrello.

DG M 4W 275 FM

Art. 952439 DG M 4W 275 FM

Prodotto 952439 è stato aggiunto al blocco note.

Prodotto 952439 è stato aggiunto al carrello.

DG M 3W 275 150

Art. 952321 DG M 3W 275 150

Prodotto 952321 è stato aggiunto al blocco note.

Prodotto 952321 è stato aggiunto al carrello.

DG M 3W 275 150 FM

Art. 952329 DG M 3W 275 150 FM

Prodotto 952329 è stato aggiunto al blocco note.

Prodotto 952329 è stato aggiunto al carrello.
