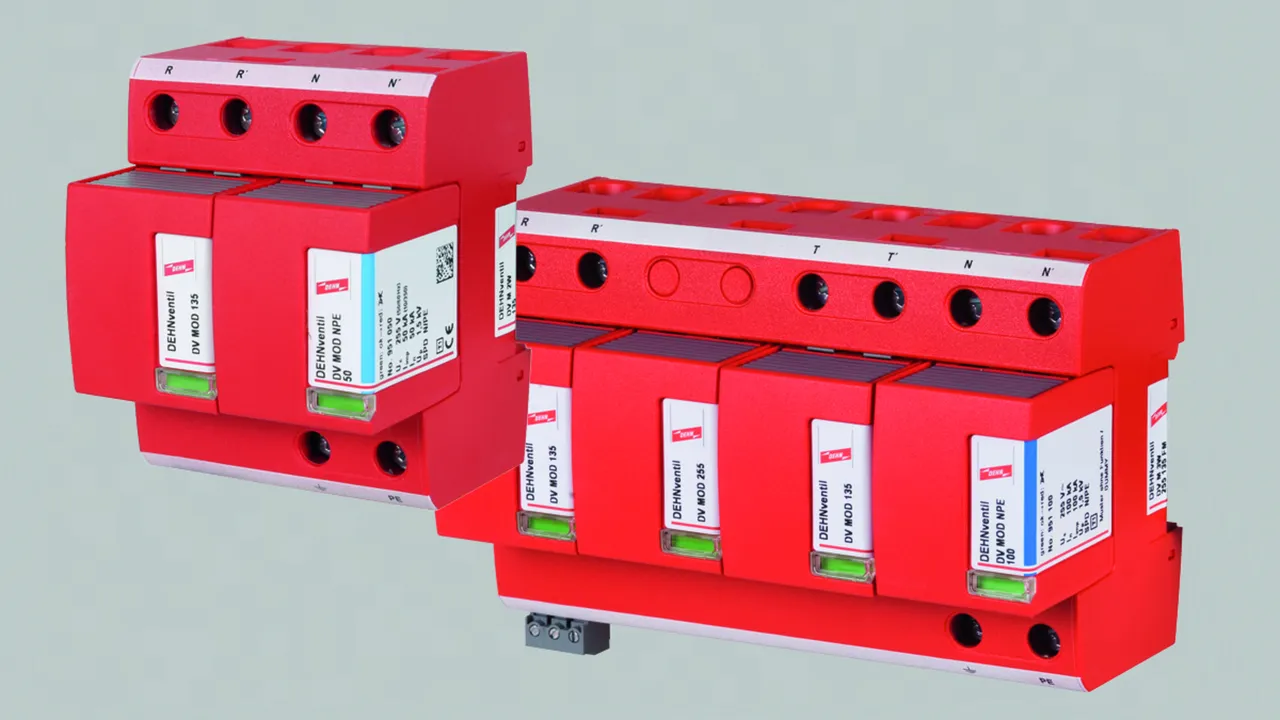

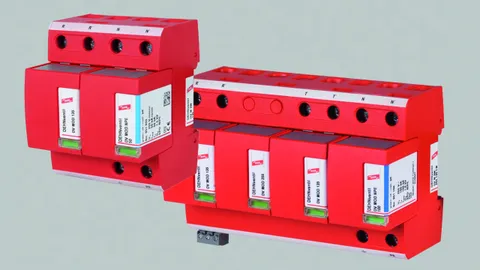

DEHNventil modular JAPAN

Prewired spark-gap-based combined lightning current and surge arrester, consisting of a base part and plug-in protection modules
Maximum system availability due to RADAX Flow follow current limitation
No tripping of 32 A gL/gG fuses up to short-circuit currents of 50 kA_rms
Discharge capacity up to 100 kA (10/350 µs)
Capable of protecting terminal equipment
Operating state / fault indication by indicator flag in the inspection window
Easy replacement of protection modules without tools due to module locking system with module release button
Vibration and shock-tested to EN 60068-2

DEHNventil M 2W 135

Modular combined lightning current and surge arrester for 1Ø2W100V power supply systems.

1 Prodotto

Art. 951118 DV M 2W 135

GTIN (EAN) 4013364110571, Codice doganale (EU): 85363090, Peso lordo: 678.30 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	1Ø2W100V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	135 V (50 / 60 Hz)
Max. continuous operating voltage NPE (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [R-N] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	50 kA
Nominal discharge current (8/20 µs) [R-N] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	50 kA
Voltage protection level [R-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R-N] (I_fi )	30 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 30 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R) up to I_K= 30 kA_rms	315 A gG
Max. backup fuse (R) at I_K> 30 kA_rms	200 A gG
Max. backup fuse (R-R´)	125 A gG
Temporary overvoltage (TOV) [R-N] (U_T)	Single-phase system - No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA

Prodotto 951118 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951118 è stato aggiunto al carrello.

Apri Web-Shop

DEHNventil M 2W 135 FM

Modular combined lightning current and surge arrester for 1Ø2W100V power supply systems; with floating remote signalling contact.

1 Prodotto

Art. 951119 DV M 2W 135 FM

GTIN (EAN) 4013364110588, Codice doganale (EU): 85363090, Peso lordo: 682.60 g, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	1Ø2W100V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	135 V (50 / 60 Hz)
Max. continuous operating voltage NPE (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [R-N] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	50 kA
Nominal discharge current (8/20 µs) [R-N] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	50 kA
Voltage protection level [R-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R-N] (I_fi )	30 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 30 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R) up to I_K= 30 kA_rms	315 A gG
Max. backup fuse (R) at I_K> 30 kA_rms	200 A gG
Max. backup fuse (R-R´)	125 A gG
Temporary overvoltage (TOV) [R-N] (U_T)	Single-phase system - No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Approvals	KEMA

Prodotto 951119 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951119 è stato aggiunto al carrello.

Apri Web-Shop

DEHNventil M 3W 255

Modular combined lightning current and surge arrester for 3Ø3W200V power supply systems.

1 Prodotto

Art. 951331 DV M 3W 255

GTIN (EAN) 4013364110632, Codice doganale (EU): 85363090, Peso lordo: 1.29 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage S-PE (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+T+S-PE] (I_total )	75 kA
Lightning impulse current (10/350 µs) [R-T,S-T,R-S] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [S-PE] (I_imp )	75 kA
Nominal discharge current (8/20 µs) [R+T+S-PE] (I_n )	75 kA
Nominal discharge current (8/20 µs) [R-T,S-T,R-S] (I_n )	25 kA
Nominal discharge current (8/20 µs) [S-PE] (I_n )	75 kA
Voltage protection level [R-T,S-T,R-S] (U_P )	≤ 1.5 kV
Voltage protection level [S-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R-T,S-T,R-S] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [S-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 50 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, T) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (R, T) at I_K> 50 kA_rms	200 A gG
Max. backup fuse (R-R´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R-T,S-T,R-S] (U_T)	No TOV test required
Temporary overvoltage [S-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [S-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, T, T´, S, S´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, T, S, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, T´, S´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Approvals	KEMA

Prodotto 951331 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951331 è stato aggiunto al carrello.

Apri Web-Shop

DEHNventil M 3W 255 FM

Modular combined lightning current and surge arrester for 3Ø3W200V power supply systems; with floating remote signalling contact.

1 Prodotto

Art. 951339 DV M 3W 255 FM

GTIN (EAN) 4013364110649, Codice doganale (EU): 85363090, Peso lordo: 1.28 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage S-PE (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+T+S-PE] (I_total )	75 kA
Lightning impulse current (10/350 µs) [R-T,S-T,R-S] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [S-PE] (I_imp )	75 kA
Nominal discharge current (8/20 µs) [R+T+S-PE] (I_n )	75 kA
Nominal discharge current (8/20 µs) [R-T,S-T,R-S] (I_n )	25 kA
Nominal discharge current (8/20 µs) [S-PE] (I_n )	75 kA
Voltage protection level [R-T,S-T,R-S] (U_P )	≤ 1.5 kV
Voltage protection level [S-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R-T,S-T,R-S] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [S-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 50 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, T) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (R, T) at I_K> 50 kA_rms	200 A gG
Max. backup fuse (R-R´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R-T,S-T,R-S] (U_T)	No TOV test required
Temporary overvoltage [S-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [S-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, T, T´, S, S´, PE, 9) (min.)	10 mm² solid/flexible
Cross-sectional area (R, T, S, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, T´, S´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Approvals	KEMA

Prodotto 951339 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951339 è stato aggiunto al carrello.

Apri Web-Shop

DEHNventil M 4W 255

Modular combined lightning current and surge arrester for 3Ø3W200V * 1Ø3W100/200V power supply systems.

1 Prodotto

Art. 951431 DV M 4W 255

GTIN (EAN) 4013364110663, Codice doganale (EU): 85363090, Peso lordo: 1.30 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V * 1Ø3W100/200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R, S, T-N] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+S+T+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [R, S, T-N] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	100 kA
Nominal discharge current (8/20 µs) [R+T+S+N-PE] (I_n )	100 kA
Nominal discharge current (8/20 µs) [R, S, T-N] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	100 kA
Voltage protection level [R, S, T-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R, S, T-N] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 50 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, S, T) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (R, S, T) at I_K> 50 kA_rms	200 A gG
Max. backup fuse (R-R´, S-S´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R,S,T-N] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, S, S´, T, T´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, S, T, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, S´, T´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Approvals	KEMA

Prodotto 951431 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951431 è stato aggiunto al carrello.

Apri Web-Shop

DEHNventil M 4W 255 FM

Modular combined lightning current and surge arrester for 3Ø3W200V * 1Ø3W100/200V power supply systems; with floating remote signalling contact.

1 Prodotto

Art. 951439 DV M 4W 255 FM

GTIN (EAN) 4013364110670, Codice doganale (EU): 85363090, Peso lordo: 1.31 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V * 1Ø3W100/200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R, S, T-N] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+S+T+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [R, S, T-N] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	100 kA
Nominal discharge current (8/20 µs) [R+T+S+N-PE] (I_n )	100 kA
Nominal discharge current (8/20 µs) [R, S, T-N] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	100 kA
Voltage protection level [R, S, T-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R, S, T-N] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 50 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, S, T) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (R, S, T) at I_K> 50 kA_rms	200 A gG
Max. backup fuse (R-R´, S-S´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R,S,T-N] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, S, S´, T, T´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, S, T, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, S´, T´, N´, 9) (max.)	35 mm2 stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Approvals	KEMA

Prodotto 951439 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951439 è stato aggiunto al carrello.

Apri Web-Shop

DEHNventil M 3W 255 135

Modular combined lightning current and surge arrester for 1Ø3W100/200V power supply systems.

1 Prodotto

Art. 951321 DV M 3W 255 135

GTIN (EAN) 4013364110601, Codice doganale (EU): 85363090, Peso lordo: 1.36 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	1Ø3W100/200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R, T-N] (U_C )	135 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R-T] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+T+N-PE] (I_total )	75 kA
Lightning impulse current (10/350 µs) [R-N, T-N, R-T] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	75 kA
Nominal discharge current (8/20 µs) [R+T+N-PE] (I_n )	75 kA
Nominal discharge current (8/20 µs) [R-N, T-N, R-T] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	75 kA
Voltage protection level [R-N,T-N, R-T] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R, T-N] (I_fi )	30 kA_rms
Follow current extinguishing capability (a.c.) [R-T] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 30 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, T) up to I_K= 30 kA_rms	315 A gG
Max. backup fuse (R, T) at I_K> 30 kA_rms	200 A gG
Max. backup fuse (R-R´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R-T] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [R,T-N] (U_T) – Characteristic	220 V / 120 min. – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, T, T´, N, N´, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (R, T, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, T´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Approvals	KEMA

Prodotto 951321 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951321 è stato aggiunto al carrello.

Apri Web-Shop

DEHNventil M 3W 255 135 FM

Modular combined lightning current and surge arrester for 1Ø3W100/200V power supply systems; with floating remote signalling contact.

1 Prodotto

Art. 951329 DV M 3W 255 135 FM

GTIN (EAN) 4013364110618, Codice doganale (EU): 85363090, Peso lordo: 1.26 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

Certificati

Caratteristiche tecniche

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	1Ø3W100/200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R, T-N] (U_C )	135 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R-T] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+T+N-PE] (I_total )	75 kA
Lightning impulse current (10/350 µs) [R-N, T-N, R-T] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	75 kA
Nominal discharge current (8/20 µs) [R+T+N-PE] (I_n )	75 kA
Nominal discharge current (8/20 µs) [R-N, T-N, R-T] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	75 kA
Voltage protection level [R-N,T-N, R-T] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R, T-N] (I_fi )	30 kA_rms
Follow current extinguishing capability (a.c.) [R-T] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 30 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, T) up to I_K= 30 kA_rms	315 A gG
Max. backup fuse (R, T) at I_K> 30 kA_rms	200 A gG
Max. backup fuse (R-R´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R-T] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [R,T-N] (U_T) – Characteristic	220 V / 120 min. – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, T, T´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, T, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, T´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Approvals	KEMA

Prodotto 951329 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 951329 è stato aggiunto al carrello.

Apri Web-Shop

Results for products (0)

Results for content (0)

DEHNventil modular JAPAN

DEHNventil M 2W 135

Art. 951118 DV M 2W 135

Prodotto 951118 è stato aggiunto al blocco note.

Prodotto 951118 è stato aggiunto al carrello.

DEHNventil M 2W 135 FM

Art. 951119 DV M 2W 135 FM

Prodotto 951119 è stato aggiunto al blocco note.

Prodotto 951119 è stato aggiunto al carrello.

DEHNventil M 3W 255

Art. 951331 DV M 3W 255

Prodotto 951331 è stato aggiunto al blocco note.

Prodotto 951331 è stato aggiunto al carrello.

DEHNventil M 3W 255 FM

Art. 951339 DV M 3W 255 FM

Prodotto 951339 è stato aggiunto al blocco note.

Prodotto 951339 è stato aggiunto al carrello.

DEHNventil M 4W 255

Art. 951431 DV M 4W 255

Prodotto 951431 è stato aggiunto al blocco note.

Prodotto 951431 è stato aggiunto al carrello.

DEHNventil M 4W 255 FM

Art. 951439 DV M 4W 255 FM

Prodotto 951439 è stato aggiunto al blocco note.

Prodotto 951439 è stato aggiunto al carrello.

DEHNventil M 3W 255 135

Art. 951321 DV M 3W 255 135

Prodotto 951321 è stato aggiunto al blocco note.

Prodotto 951321 è stato aggiunto al carrello.

DEHNventil M 3W 255 135 FM

Art. 951329 DV M 3W 255 135 FM

Prodotto 951329 è stato aggiunto al blocco note.

Prodotto 951329 è stato aggiunto al carrello.
