Components for Buildings with Thatched Roof
:quality(98)/dehn.it/store/f/57090607/HDVORSCHAU/240000a1_16-9.jpg)
:quality(98)/dehn.it/store/f/57090607/HDVORSCHAU/240000a1_16-9.jpg)

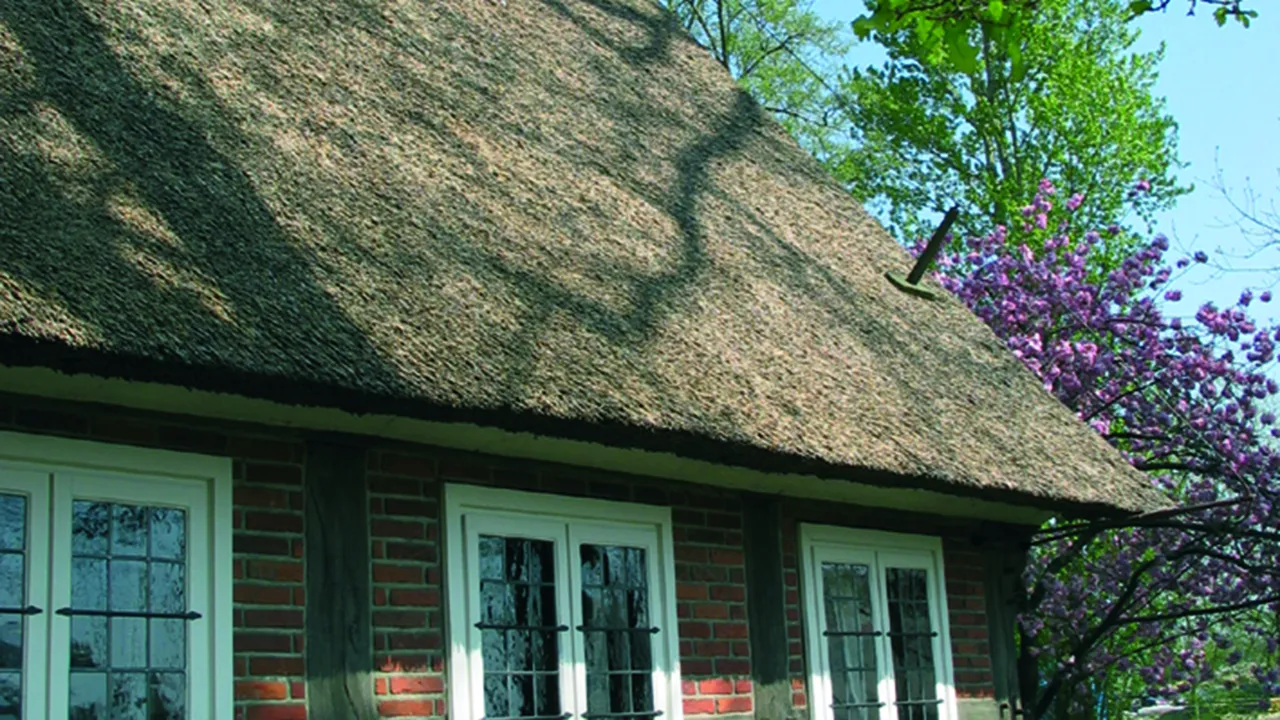

Air-termination conductors on thatched roofs have to be installed at a distance to the roof, e.g. on isolating supports. Certain distances also have to be kept to the eaves.
The span width for ridge conductors is approx. 15 m and for down conductors approx. 10 m without additional supports. Span stakes have to be fastened to the roof construction (rafters and crossbars) using anchor bolts and flat washers.
Today an isolated (HVI) lightning protection system is often used as an external lightning protection system for buildings with thatched roofs.
Art. 145241 HP 90X90 2400 EHI
GTIN (EAN) 4013364022584, Codice doganale (EU): 44219999, Peso lordo: 52.00 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/dehn.it/store/f/57090616/HDVORSCHAU/145241.jpg)
:quality(98)/dehn.it/store/f/57090616/HDVORSCHAU/145241.jpg)
:quality(98)/dehn.it/store/f/57090617/HDVORSCHAU/145241m_D.jpg)
:quality(98)/dehn.it/store/f/57090617/HDVORSCHAU/145241m_D.jpg)
Caratteristiche tecniche
| Material | oak (impregnated) |
| Dimensions (l x w x h) | 90 x 90 x 2400 mm |
Art. 146309 SPK 100X100 FSP10 300 7.10 V2A
GTIN (EAN) 4013364072398, Codice doganale (EU): 85389099, Peso lordo: 864.20 g, UM: 1.00 pc(s)
:quality(98)/dehn.it/store/f/57090628/HDVORSCHAU/146309.jpg)
:quality(98)/dehn.it/store/f/57090628/HDVORSCHAU/146309.jpg)
:quality(98)/dehn.it/store/f/57090629/HDVORSCHAU/146309m_D.jpg)
:quality(98)/dehn.it/store/f/57090629/HDVORSCHAU/146309m_D.jpg)
Art. 240000 DLS 6.10 134X300X598 EHI
GTIN (EAN) 4013364022614, Codice doganale (EU): 44219999, Peso lordo: 1.50 kg, UM: 1.00 pc(s)
:quality(98)/dehn.it/store/f/57090639/HDVORSCHAU/240000.jpg)
:quality(98)/dehn.it/store/f/57090639/HDVORSCHAU/240000.jpg)
:quality(98)/dehn.it/store/f/57090640/HDVORSCHAU/240000m_D.jpg)
:quality(98)/dehn.it/store/f/57090640/HDVORSCHAU/240000m_D.jpg)
Caratteristiche tecniche
| Material | oak (impregnated) |
| Dimensions (l x w x h) | 134 x 300 x 598 mm |
| Support Rd | 6-10 mm |
Art. 239000 TS 7.10 V1.0 1.15M STTZN
GTIN (EAN) 4013364022621, Codice doganale (EU): 85389099, Peso lordo: 4.70 kg, UM: 1.00 pc(s)
:quality(98)/dehn.it/store/f/57090650/HDVORSCHAU/239009.jpg)
:quality(98)/dehn.it/store/f/57090650/HDVORSCHAU/239009.jpg)
:quality(98)/dehn.it/store/f/57090651/HDVORSCHAU/239000m_E.jpg)
:quality(98)/dehn.it/store/f/57090651/HDVORSCHAU/239000m_E.jpg)
Caratteristiche tecniche
| Material | St/tZn |
| Adjustable range (l1) | 1.05-1.20 m |
| Support Rd | 7-10 mm |
Art. 239001 TS 7.10 V1.25 1.40M STTZN
GTIN (EAN) 4013364022638, Codice doganale (EU): 85389099, Peso lordo: 5.17 kg, UM: 1.00 pc(s)
:quality(98)/dehn.it/store/f/57090659/HDVORSCHAU/239009.jpg)
:quality(98)/dehn.it/store/f/57090659/HDVORSCHAU/239009.jpg)
:quality(98)/dehn.it/store/f/57090660/HDVORSCHAU/239000m_E.jpg)
:quality(98)/dehn.it/store/f/57090660/HDVORSCHAU/239000m_E.jpg)
Caratteristiche tecniche
| Material | St/tZn |
| Adjustable range (l1) | 1.40-1.55 m |
| Support Rd | 7-10 mm |
Art. 239009 TS 7.10 V1.25 1.55M V2A
GTIN (EAN) 4013364072350, Codice doganale (EU): 85389099, Peso lordo: 4.04 kg, UM: 1.00 pc(s)
:quality(98)/dehn.it/store/f/57090668/HDVORSCHAU/239009.jpg)
:quality(98)/dehn.it/store/f/57090668/HDVORSCHAU/239009.jpg)
:quality(98)/dehn.it/store/f/57090669/HDVORSCHAU/239000m_E.jpg)
:quality(98)/dehn.it/store/f/57090669/HDVORSCHAU/239000m_E.jpg)
Caratteristiche tecniche
| Material | StSt |
| Adjustable range (l1) | 1.25-1.55 m |
| Support Rd | 7-10 mm |
Art. 239019 TS 7.10 V1.45 1.75M V2A
GTIN (EAN) 4013364093560, Codice doganale (EU): 85389099, Peso lordo: 5.20 kg, UM: 1.00 pc(s)
:quality(98)/dehn.it/store/f/57090677/HDVORSCHAU/239009.jpg)
:quality(98)/dehn.it/store/f/57090677/HDVORSCHAU/239009.jpg)
:quality(98)/dehn.it/store/f/57090678/HDVORSCHAU/239000m_E.jpg)
:quality(98)/dehn.it/store/f/57090678/HDVORSCHAU/239000m_E.jpg)
Caratteristiche tecniche
| Material | StSt |
| Adjustable range (l1) | 1.45-1.75 m |
| Support Rd | 7-10 mm |
Art. 241009 ASK 8 150 40 2XB10.5 V2A
GTIN (EAN) 4013364072985, Codice doganale (EU): 85389099, Peso lordo: 383.21 g, UM: 20.00 pc(s)
:quality(98)/dehn.it/store/f/57090688/HDVORSCHAU/241009.jpg)
:quality(98)/dehn.it/store/f/57090688/HDVORSCHAU/241009.jpg)
:quality(98)/dehn.it/store/f/57090689/HDVORSCHAU/241009m_D.jpg)
:quality(98)/dehn.it/store/f/57090689/HDVORSCHAU/241009m_D.jpg)
Caratteristiche tecniche
| Material | StSt |
| Dimensions (l x w x d) | 150 x 40 x 6 mm |
| Support Rd | 8 mm |
