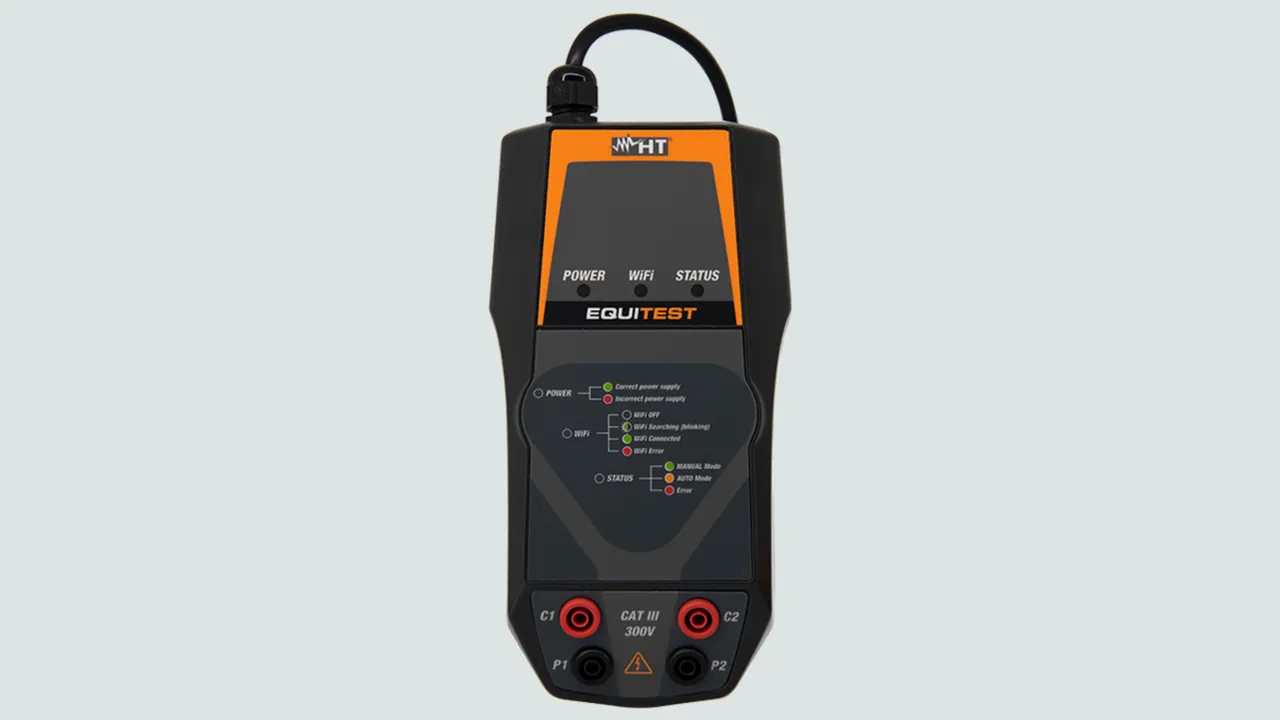

10 A continuity tester HT EQUITEST
:quality(98)/dehn.it/store/f/57110447/HDVORSCHAU/578321_fam_16-9.jpg)
:quality(98)/dehn.it/store/f/57110447/HDVORSCHAU/578321_fam_16-9.jpg)
For testing the continuity of steel reinforcements in reinforced concrete in accordance with DIN EN 62305-3 as well as the protective and equipotential bonding conductors with a measuring current of 10 A. The EQUITEST is an accessory for the COMBI G3 installation test device and can only be used in combination with it. LED indicators for displaying the measurement status. Recognition of manual and automatic operating modes.Accessories:
- Optical connecting cable to COMBI G3 master device
- Power cable with Schuko Euro plug
- Cable set: 2 cables (L=3,000mm) with integrated alligator clip
- Storage bag
- ISO9000 calibration certificate
- Operating instructions
- Instruction card for operating instructions / software download
Art. 578321 EQUITEST
GTIN (EAN) 4013364538658, Codice doganale (EU): 85444290, Peso lordo: 2.43 kg, UM: 1.00 pc(s)
Immagini
:quality(98)/dehn.it/store/f/57110451/HDVORSCHAU/578321.jpg)
:quality(98)/dehn.it/store/f/57110451/HDVORSCHAU/578321.jpg)
Certificati
Caratteristiche tecniche
| Measurement status display | LED |
| Test current | >10 A AC |
| Measuring method | 4 cables |
| Power supply | 230 V / 240 V ±10% – 50 / 60 Hz |
| Master device interface | Optical / USB interface |
| Mobile devices interface | Wi-Fi (through HTAnalysis app) |
| Dimensions (l x w x d) | 210 x 115 x 60 mm |
