DEHNiso Combi Sets

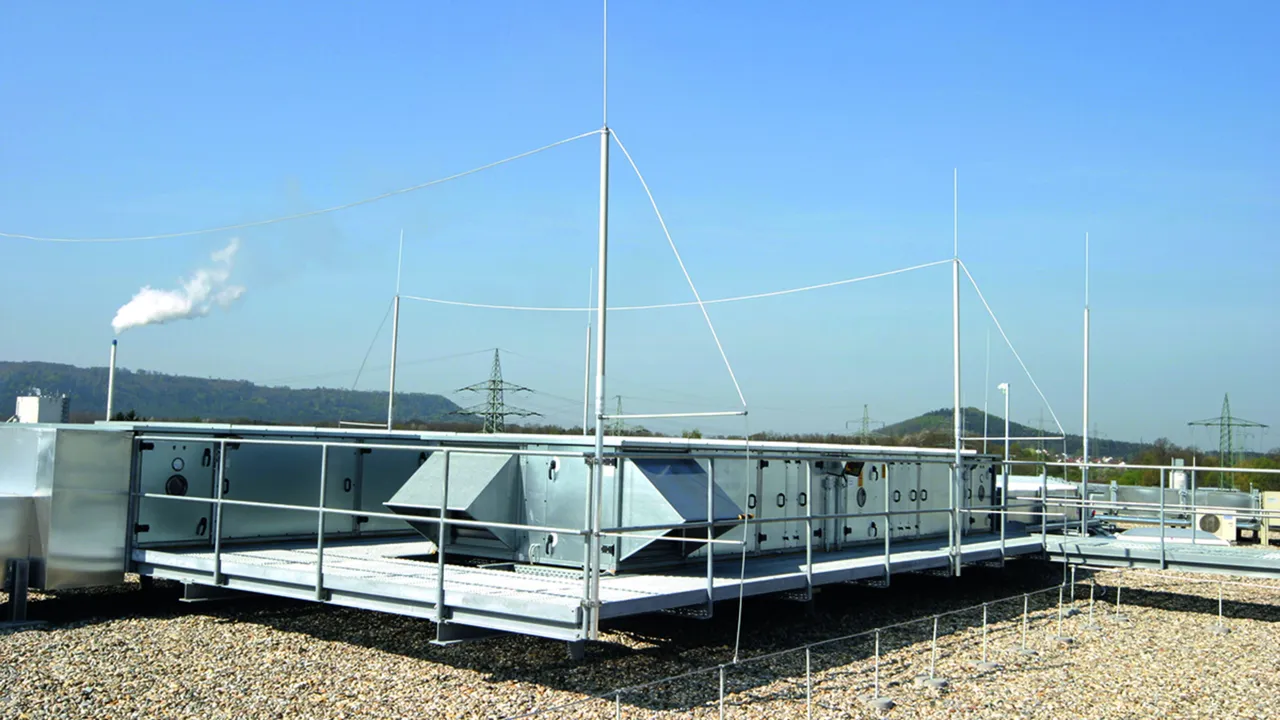

Components for isolated air-termination systems. For protecting large roof-mounted structures such as air-conditioning systems, heat exchangers etc.For keeping the separation distance to electrically conductive parts according to IEC/EN 62305-3.Tubes and spacers made of glass-fibre reinforced plastic (GRP), UV-stabilised, light grey colour, permanent temperature range -50 up to 100 °C.
  • Complete unit ready for installation
  • Low own weight
  • Stable overall design
  • One-screw fixing clamps
  • Various holes for different mounting requirements
The separation distance (insulating clearance) is determined with material factor km = 0.7 (length of the spacer bar).1 m of spacer bar is equivalent to a clearance in air of 0.7 m.The distance between the head of the supporting tube and the upper holder (fixing point) is considered as maximum free length.Distances for spanning of aluminium cables (Part No. 840 050) of max. 10 m (observe the sag) are allowed.

One-piece, total height 4200 mm

Consisting of:
1x air-termination tip StSt, L = 1000 mm (Part No. 105 071)
1x supporting tube GRP/Al, L = 3200 mm (Part No. 105 300)
2x wall mounting bracket StSt (Part No. 105 340)
1x spacer GRP/Al, L = 1030 mm (Part No. 106 331)

1 Prodotto

Art. 105440 DICS WB D50.10 4.2M GFK AL V2A

GTIN (EAN) 4013364099692, Codice doganale (EU): 85389099, Peso lordo: 7.64 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

  • File CAD
    • 105440.stp

      Non siete autorizzati per eseguire un download 105440.stp

      Login
    • 105440.igs

      Non siete autorizzati per eseguire un download 105440.igs

      Login
    • 105440.jt

      Non siete autorizzati per eseguire un download 105440.jt

      Login
    • 105440.dwg

      Non siete autorizzati per eseguire un download 105440.dwg

      Login
    • 105440m_D.dxf

      Non siete autorizzati per eseguire un download 105440m_D.dxf

      Login
DEHNiso Combi sets, total length: 4200 mm, GRP/Al
DEHNiso Combi sets
Components for isolated air-termination systems for protecting large roof-mounted structures,
e.g. air-conditioning systems, heat exchangers, etc.
For keeping the separation distance from
conductive parts according to EN 62305-3
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Tube, Ø50 mm and spacer bar, Ø16 mm
Material factor km = 0.7
Light grey colour, UV-stabilised
One-piece,
DEHNiso Combi sets are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) and consist of:
1x Al air-termination tip, L = 1000 mm (Part No. 105 071)
1x GRP/Al supporting tube, L = 3200 mm (Part No. 105 300)
2x StSt (V2A) wall mounting bracket (Part No. 105 340)
1x GRP/Al spacer, L = 1030 mm (Part No. 106 331)

Total length: 4200 mm
Number of fixing brackets: 2
Length of supporting tube: 3200 mm
Max. gust wind speed: (Wall mounting max. free length 3,500 mm, Ø8 mm) 232 km/h
Material of supporting tube: GRP / Al
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DICS WB D50.10 4.2M GFK AL V2A
Part No.: 105440
or equivalent.

Certificati



Caratteristiche tecniche

Total length 4200 mm
Number of fixing brackets 2
Length of supporting tube 3200 mm
Max. gust wind speed (Wall mounting max. free length 3,500 mm, Ø8 mm) 232 km/h
Material of supporting tube GRP / Al
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105440 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105440 è stato aggiunto al carrello.

Apri Web-Shop

One-piece, total height 5700 mm

Consisting of:
1x air-termination tip StSt, L = 1000 mm (Part No. 105 071)
1x supporting tube GRP/Al, L = 4700 mm (Part No. 105 301)
3x wall mounting bracket StSt (Part No. 105 340)
2x spacer GRP/Al, L = 1030 mm (Part No. 106 331)

1 Prodotto

Art. 105455 DICS WB D50 10 5700 GFK AL V2A

GTIN (EAN) 4013364099715, Codice doganale (EU): 85389099, Peso lordo: 11.45 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

  • File CAD
    • 105455.stp

      Non siete autorizzati per eseguire un download 105455.stp

      Login
    • 105455.igs

      Non siete autorizzati per eseguire un download 105455.igs

      Login
    • 105455.jt

      Non siete autorizzati per eseguire un download 105455.jt

      Login
    • 105455.dwg

      Non siete autorizzati per eseguire un download 105455.dwg

      Login
    • 105455m_D.dxf

      Non siete autorizzati per eseguire un download 105455m_D.dxf

      Login
DEHNiso Combi sets, total length: 5700 mm, GRP/Al
DEHNiso Combi sets
Components for isolated air-termination systems for protecting large roof-mounted structures,
e.g. air-conditioning systems, recooling plants, etc.
For keeping the separation distance from
conductive parts according to EN 62305-3
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Tube, Ø50 mm and spacer bar, Ø16 mm
Material factor km = 0.7
Light grey colour, UV-stabilised
One-piece,
DEHNiso Combi sets are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) and consist of:
1x Al air-termination tip, L = 1000 mm (Part No. 105 071)
1x GRP/Al supporting tube, L = 4700 mm (Part No. 105 340)
3x StSt (V2A) wall mounting bracket (Part No. 105 340)
´2x GRP/Al spacer, L = 1030 mm (Part No. 106 331)
Total length: 5700 mm
Number of fixing brackets: 3
Length of supporting tube: 4700 mm
Max. gust wind speed: (Wall mounting max. free length 4,000 mm, Ø8 mm) 206 km/h
Material of supporting tube: GRP / Al
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DICS WB D50 10 5700 GFK AL V2A
Part No.: 105455
or equivalent.

Certificati



Caratteristiche tecniche

Total length 5700 mm
Number of fixing brackets 3
Length of supporting tube 4700 mm
Max. gust wind speed (Wall mounting max. free length 4,000 mm, Ø8 mm) 206 km/h
Material of supporting tube GRP / Al
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105455 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105455 è stato aggiunto al carrello.

Apri Web-Shop

Two-piece, total height 7200 mm

(transport length 3200 mm)
Consisting of:
1x air-termination tip StSt, L = 1000 mm (Part No. 105 071)
1x supporting tube GRP/Al, L = 6200 mm (Part No. 105 302)
3x wall mounting bracket StSt (Part No. 105 340)
3x spacer GRP/Al, L = 1030 mm (Part No. 106 331)

1 Prodotto

Art. 105470 DICS WB D50 10 7200 GFK AL V2A

GTIN (EAN) 4013364100138, Codice doganale (EU): 85389099, Peso lordo: 14.65 kg, UM: 1.00 pc(s)

Immagini

Maggior informazioni

  • File CAD
    • 105470.stp

      Non siete autorizzati per eseguire un download 105470.stp

      Login
    • 105470.igs

      Non siete autorizzati per eseguire un download 105470.igs

      Login
    • 105470.jt

      Non siete autorizzati per eseguire un download 105470.jt

      Login
    • 105470.dwg

      Non siete autorizzati per eseguire un download 105470.dwg

      Login
    • 105470m_D.dxf

      Non siete autorizzati per eseguire un download 105470m_D.dxf

      Login
DEHNiso Combi sets, two-part, total length: 7200 mm, GRP/Al
DEHNiso Combi sets
Components for isolated air-termination systems for protecting large roof-mounted structures,
e.g. air-conditioning systems, recooling plants, etc.
For keeping the separation distance from
conductive parts according to EN 62305-3
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Tube, Ø50 mm and spacer bar, Ø16 mm
Material factor km = 0.7
Light grey colour, UV-stabilised
Two-piece (transport length of 3200 m),
DEHNiso Combi sets are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) and consist of:
1x Al air-termination tip, L = 1000 mm (Part No. 105 071)
1x GRP/Al supporting tube, L = 6200 mm (Part No. 105 302)
3x StSt (V2A) wall mounting bracket (Part No. 105 340)
3x GRP/Al spacer, L = 1030 mm (Part No. 106 331)
Total length: 7200 mm
Number of fixing brackets: 3
Length of supporting tube: 6200 mm
Max. gust wind speed: (Wall mounting max. free length 4,000 mm, Ø8 mm) 206 km/h
Material of supporting tube: GRP / Al
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DICS WB D50 10 7200 GFK AL V2A
Part No.: 105470
or equivalent.

Certificati



Caratteristiche tecniche

Total length 7200 mm
Number of fixing brackets 3
Length of supporting tube 6200 mm
Max. gust wind speed (Wall mounting max. free length 4,000 mm, Ø8 mm) 206 km/h
Material of supporting tube GRP / Al
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Prodotto 105470 è stato aggiunto al blocco note.

Apri blocco note

Prodotto 105470 è stato aggiunto al carrello.

Apri Web-Shop
